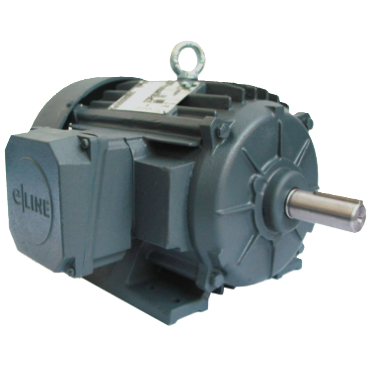

U.S. Motors D32P2G General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D32P2G is a general purpose three phase motor designed for various applications. This motor features a horsepower rating of one and a half and operates at an RPM of one thousand eight hundred. It is suitable for use in locations requiring a horizontal footed mount with an open drip proof enclosure.

• Power: 1 1/2 HP
• Voltage: 575
• Efficiency: 86.5%

Product Highlights

This motor is built for continuous duty with a service factor of 1.15. It has a full load amp rating of 1.7 and is designed with a 145T frame for durability. The unit is well-suited for HVAC systems and industrial applications, ensuring reliable operation.

Product Information

Standard Information

• Duty: Continuous Duty
• Insulation: F

Technical Specifications

• Full Load RPM: 1750 RPM
• Enclosure: ODP, Drip Proof
• Drive End Bearing: 6313-J
• Open End Bearing: 6313-J
• Frame: 145T
• Phase: Three Phase
• Full Load Efficiency: 86.5%
• Mounting: Horizontal Mount, Horizontal - Footed
