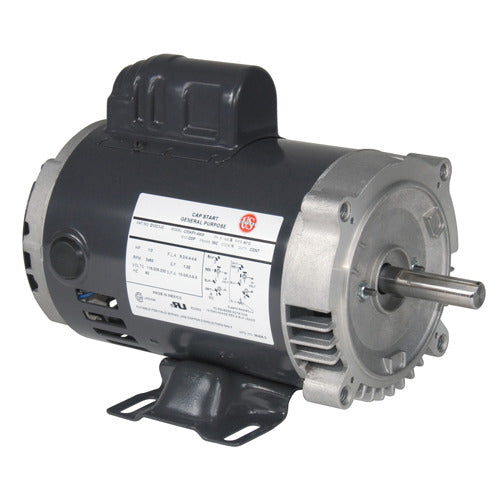

U.S. Motors D32CP2PHC General Purpose Single Phase ODP Rigid Base Motor

Product Description

The U.S. Motors D32CP2PHC is a general purpose single phase open drip proof motor. This motor operates at one and a half horsepower and has a speed rating of one thousand eight hundred RPM. It is designed for applications requiring reliable performance in various environments.

• Motor type: General Purpose
• Voltage rating: One hundred fifteen to two hundred thirty volts
• Mounting style: Rigid base

Product Highlights

This motor is suitable for a variety of applications, including HVAC systems and industrial machines. It offers continuous duty operation and is built with an open drip proof enclosure to protect against moisture and dirt.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D32CP2PHC

Technical Specifications

• Enclosure Designation: ODP - Open Drip Proof
• Duty: Continuous Duty
• Full Load Amps: 13.4/6.7
• Poles: 4
• RPM: 1800
• Phase: Single Phase
• Insulation: B
• Frame: 56HC
• Weight: 24.0 LB
• Voltage Rating: 115/230
• Full Load Efficiency: 83.8%
• Full Load rpm: 1725
