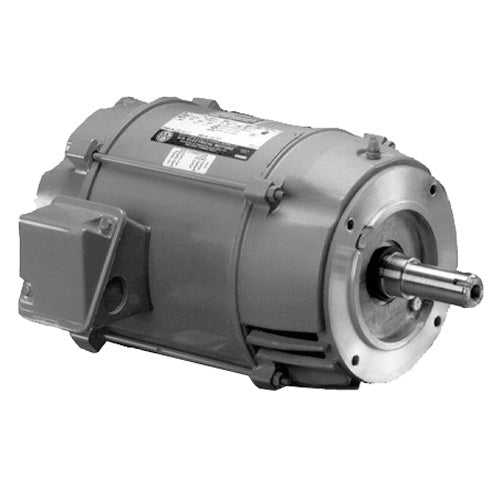

U.S. Motors D2E2ACR General Purpose Three Phase ODP C-Face Motor

Product Description

The U.S. Motors D2E2ACR is a general-purpose three-phase motor designed for various applications. This motor has a power rating of two horsepower and operates at a rated speed of one thousand eight hundred RPM. It is suitable for continuous duty and features an open drip proof (ODP) enclosure to protect against moisture.

• Frame size: 145TC
• Voltage Rating: 208-230/460 volts
• Service Factor: 1.15

Product Highlights

This motor provides efficient performance with a full load efficiency of eighty-four percent. It features a robust construction with rolled steel material and is equipped with high-quality ball bearings. The C-face mounting allows for easy installation in various systems.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D2E2ACR

Technical Specifications

• Frame: 145TC, 145C
• Poles: 4
• Duty: Continuous Duty
• Full Load RPM: 1725 RPM
• Full Load Efficiency: 84%
• Motor Application: General Purpose
• Voltage Rating: 208-230/460
• Open End Bearing: 6203
• Phase: Three Phase
• Mounting: C-Face - Less Base
• Weight: 45.0 LB
• Service Factor: 1.15
• Drive End Bearing: 6205
• Full Load Amps: 6.1-6.2/3.1
