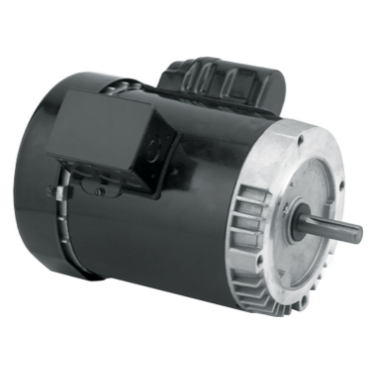

U.S. Motors 6182 General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors 6182 is a general purpose single phase motor designed for various applications. This motor operates at a horsepower of 1/6 and reaches speeds of 1200 RPM. It features a totally enclosed fan cooled and C-face mount design.

• Voltage: 115/208-230
• Standard frequency: 60 Hz
• Continuous duty operation

Product Highlights

This motor is suitable for a variety of general purpose applications. Its robust design and efficient performance make it a reliable choice for HVAC and other industrial uses.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 6182

Technical Specifications

• HP: 1/6
• RPM: 1200
• Frame: 56C
• Weight: 21.0 lb
• Full Load Efficiency: 52.6%
• Insulation Class: B
• Service Factor: 1.15
• Amperage: 4.1/2-2.1
• Voltage Rating: 115/208-230
• Duty: Continuous Duty
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Poles: 6
• Mounting: C-Face - Less Base
