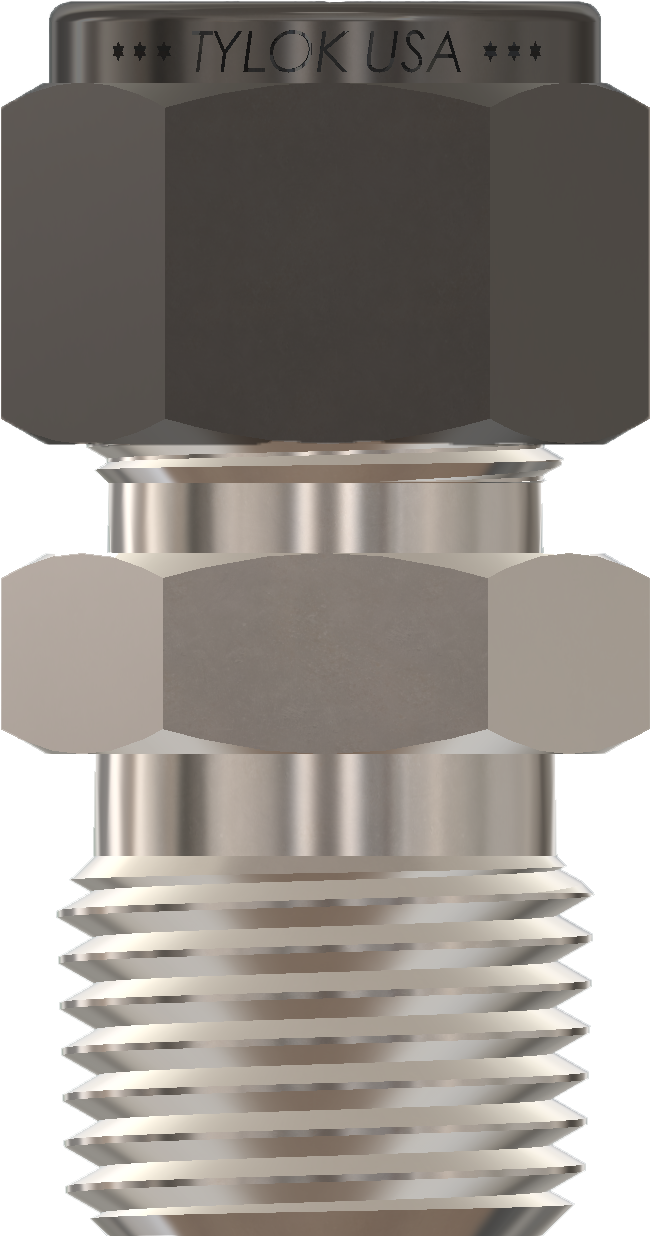

TyLok SS-6-SMC-8 Stainless 3/8 CS Tube x 1/2 MNPT Straight, Single Ferrule System

Product Description

The TyLok SS-6-SMC-8 is a stainless steel connector that features a single ferrule design. This model is part of the SMC series and designed for seamless tube to MNPT connections. With a nominal size of three eighths by one half inches, it is suitable for various piping applications.

• Single ferrule swaging system for secure connections
• Made from 316 stainless steel for durability
• Compatible with other TyLok fittings

Product Highlights

This connector showcases total component interchangeability and enhanced resistance to vibration. It is heat code traceable and conforms to ASTM material standards, ensuring reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: TyLok International Inc
• Series: SMC

Technical Specifications

• Material: 316 Stainless Steel
• Nominal Size: 3/8 x 1/2 in
• Hex Size: 7/8 in
• Length: 1.83 in
• Domestic/Import: Domestic
• Fitting/Connector Type: Connector
