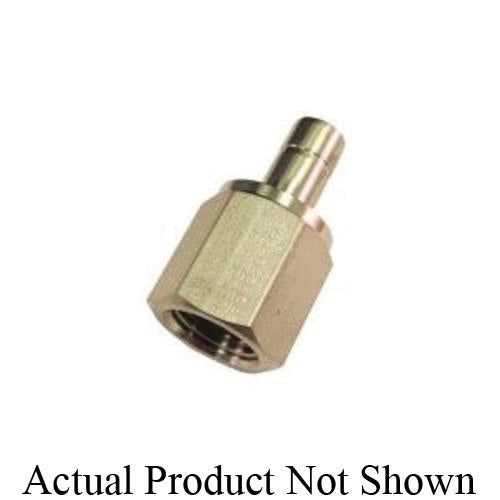

TYLOK SS-4-DATPF-8 Stainless 1/4 CBC Tube Adapter x 1/2 FNPT Straight

Product Description

The TYLOK SS-4-DATPF-8 is a stainless steel tube adapter designed to connect a quarter-inch CBC tube to a half-inch FNPT fitting. This adapter is useful in various piping applications, ensuring a secure fit with its double ferrule design. Made of 316 stainless steel, it is suitable for both domestic and industrial settings.

• 1/4 inch CBC tube to 1/2 inch FNPT connection
• Double ferrule design for a strong seal
• Constructed from durable 316 stainless steel

Product Highlights

This adapter is engineered for dependability in demanding environments. The double ferrule technology provides enhanced sealing capabilities, making it ideal for high-pressure applications.

Product Information

Standard Information

• Manufacturer: TYLOK INTERNATIONAL INC
• Type: Adapter

Technical Specifications

• Nominal Size: 1/4 x 1/2 inch
• Hex Size: 1-1/16 inch
• Length: 1.812 inch
• Fitting/Connector Type: Double Ferrule
• Material: 316 Stainless Steel
• End Style: Tube x FNPT
• Series: DATPF
• Domestic/Import: Domestic
