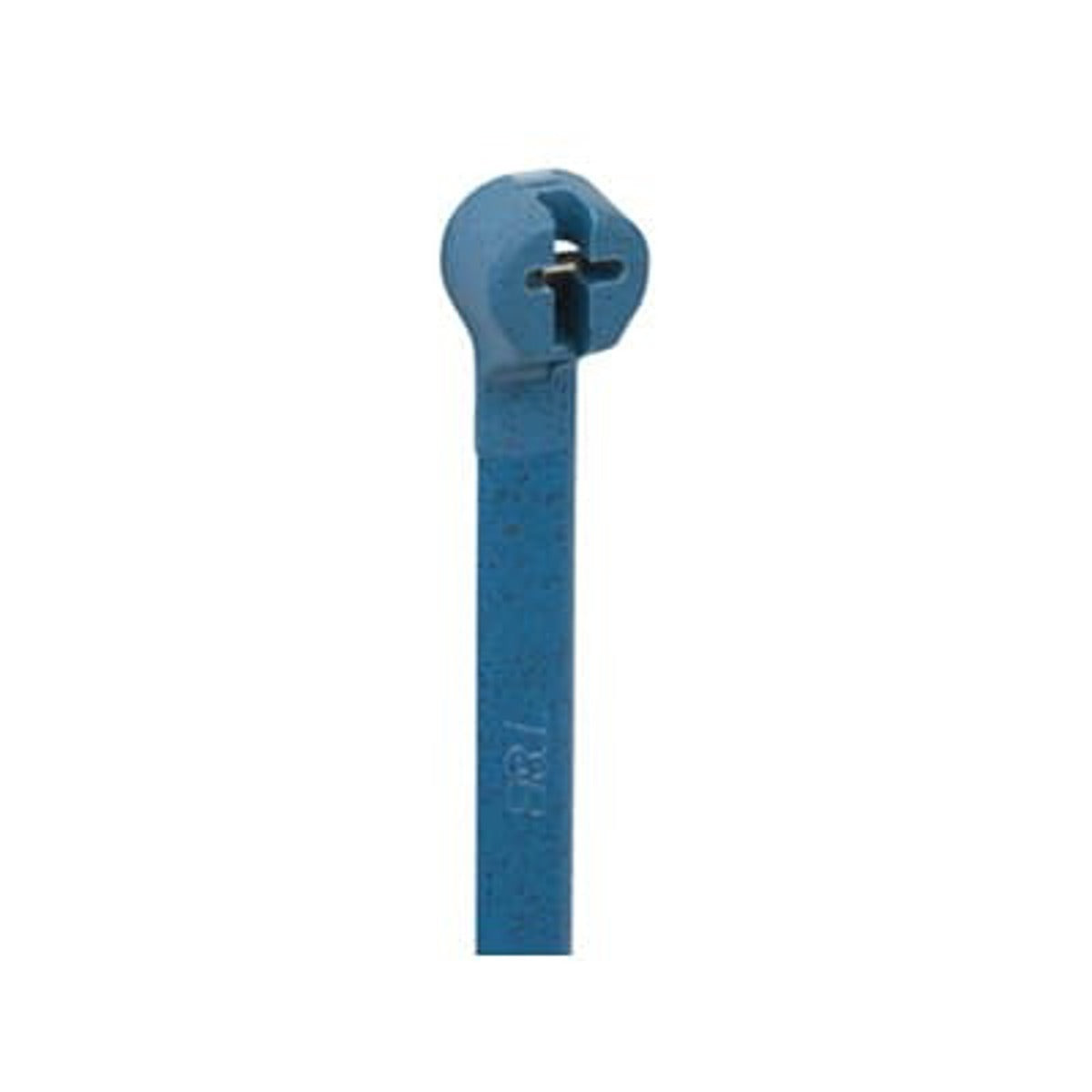

Ty-Rap TY527M-NDT Detectable Cable Tie 120 pounds

Product Description

The TY-RAP TY527M-NDT detectable cable tie is made of bright blue polyamide (Nylon 6.6) and is designed for temperatures up to 85 Degrees Celsius (185 F). It has a length of 343mm (13.5 Inches), a width of 6.9mm (0.27 Inches), and a tensile strength rating of 534 Newtons (120 Pounds). It can be detected by metal detectors, X-ray equipment, or visual detection.

• Detectable by metal detectors
• Detectable by X-ray equipment
• Visual detection
• Stainless steel locking device

Product Highlights

This detectable cable tie offers reliable fastening and easy detection in various applications.

Product Information

Standard Information

• Brand: TY-RAP
• Manufacturer Part Number: TY527M-NDT
• Country of Origin: United States

Technical Specifications

• Catalog Number: TY527M-NDT
• Manufacturer: ABB - Installation Products
• Brand: TY-RAP
• Country of Origin: United States
• Made in USA: Yes
• Color: Blue
• Lock Mechanism: Stainless Steel Barb
• Material: Nylon/Polyamide 6.6
• Special Features: Detectable by metal detectors, X-ray equipment, or visual detection
• UPC: 786210995373
• GTIN: 00786210995373
• Item Type: Detectable
• Length: 13.5 in , 343 mm
• Width: 0.27 in , 6.9 mm
• Tensile Strength: 120 pounds , 534 newtons
• Thickness: 0.06 in , 1.5 mm
• Bundle Diameter: 3.5 Inch
• Type: 1-Piece, Locking
• Temperature Rating: -40 to 185 Deg F
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC000046 Cable tie
• Band width: 6.9 mm
• Length belt/tape/tie: 343 mm
• Tie thickness: 1.5 mm
• Max. bundle diameter: 95 mm
• Min. holding force: 534 N
• Operation temperature: -40-+85 °C
• Model: Internal toothing
• Band closure: Steel nose
• Material quality: Polyamide (PA)
• Surface protection: Untreated
• UV-stable acc. ASTM D6779: N
• Halogen free: Y
• Transparent: N
• Reflective (fluorescent): N
• Text strip: None
• Solvable fastener: N
• VG approval: N
• MIL approval: N
• Inflammability class of insulation material acc. with UL94: V2
