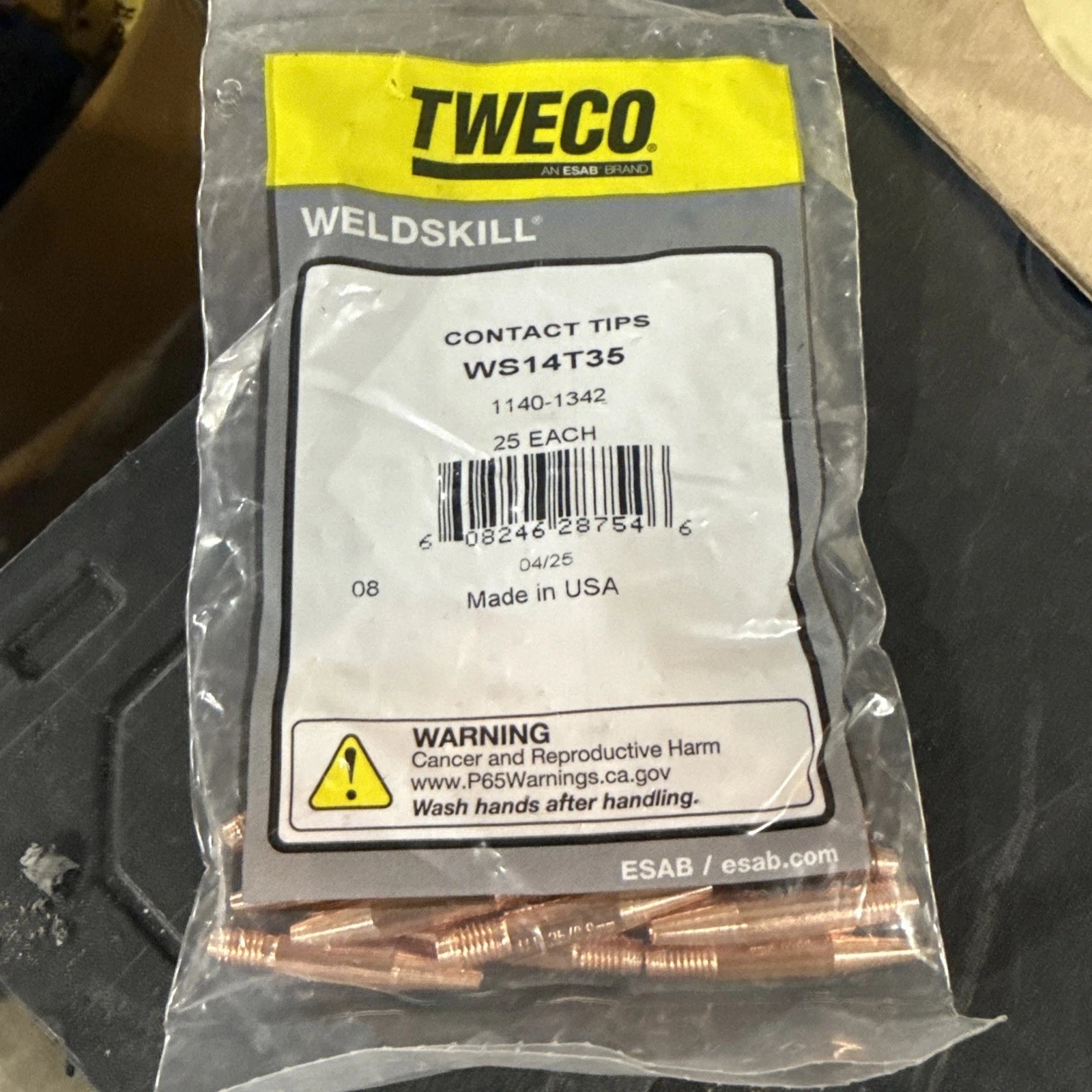

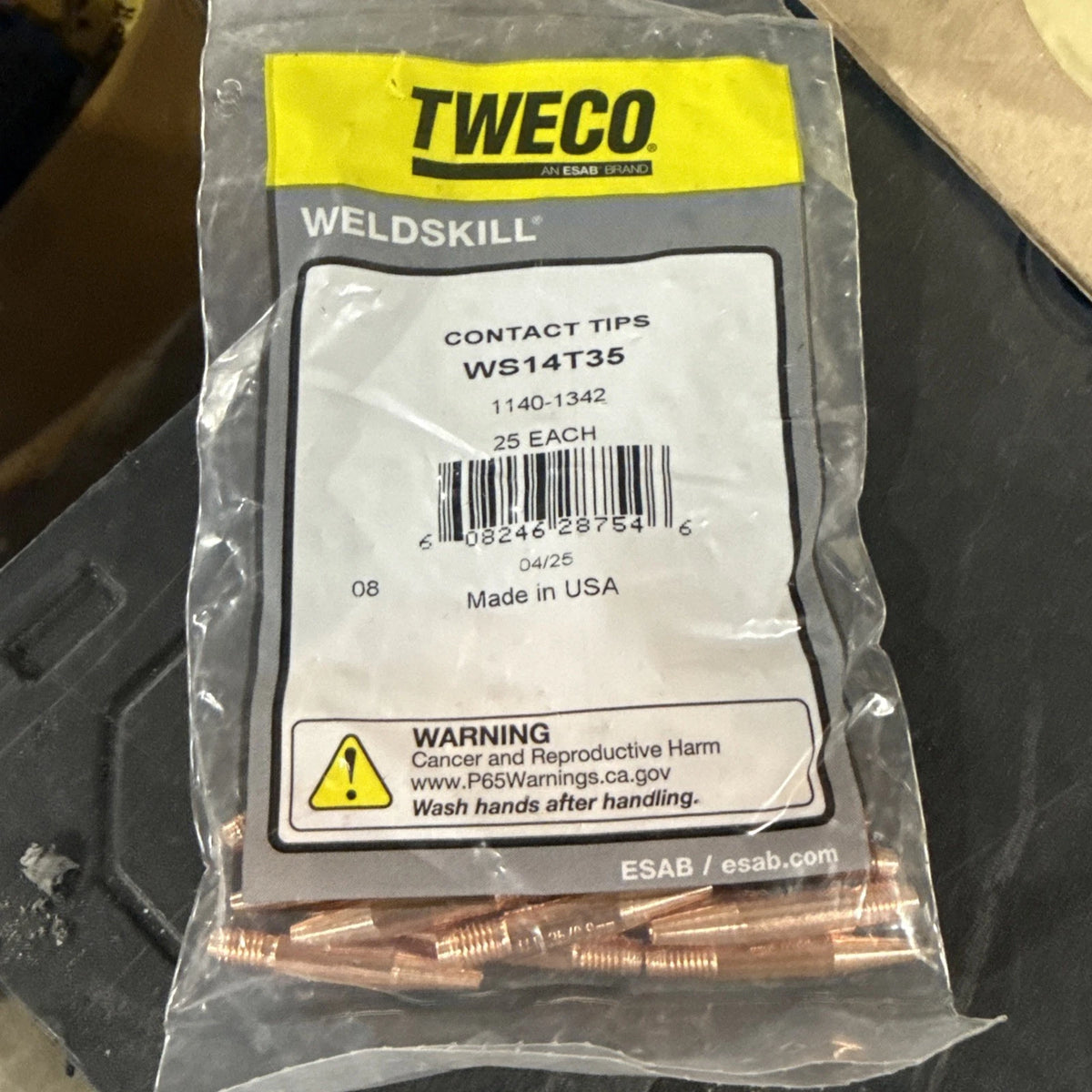

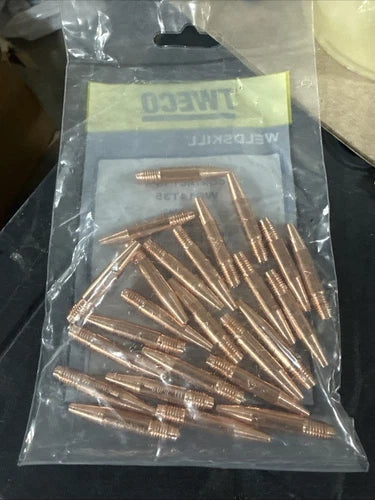

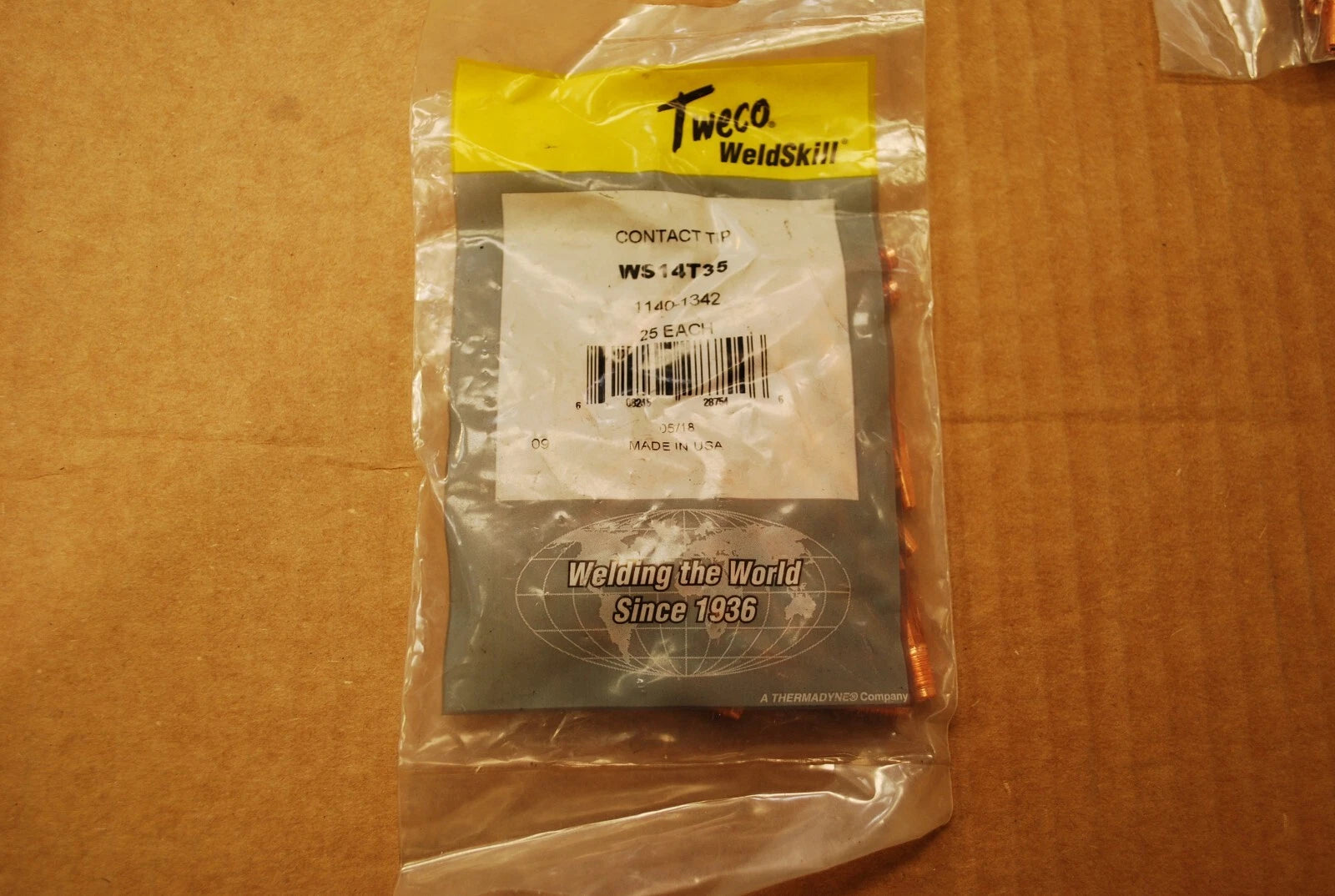

TWECO WS14T35 Contact Tip

Product Description

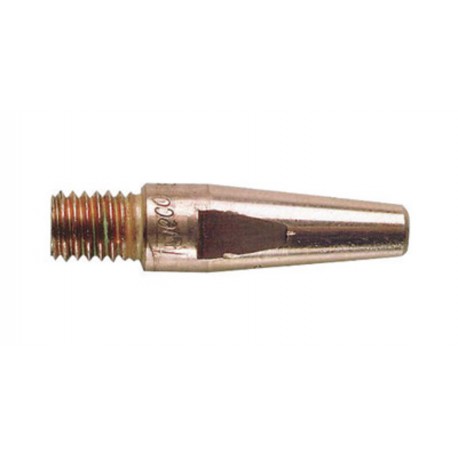

The TWECO WS14T35 is a contact tip specifically made for MIG welding guns. It is compatible with 0.035 diameter welding wire and can handle applications up to 400A. This contact tip has a 1/4-28 UNF thread size and is made from durable 122 DHP copper alloy.

• Compatible with 0.035 diameter welding wire.
• Features a tapered design with 1/4-28 UNF threads.
• Suitable for applications up to 400A.

Product Highlights

This contact tip ensures a reliable connection with a gas diffuser when properly installed. It is marked for easy identification, featuring the part number and wire diameter.

Product Information

Standard Information

• Brand: TWECO
• MPN: WS14T35

Technical Specifications

• Item Type: Contact Tips
• Wire Size: 0.035
• Tip Style: Tapered
• Outside Diameter: 0.25 inches (6.35 mm)
• Thread Size: 1/4-28 UNF-2A
• Overall Length: 1.50 inches (38.1 mm)
• Amperage Range: Up To 400A
• Material: 122 DHP Copper Alloy
• Tip Series: 14 Series
• Bore: 0.044 inches
• Nominal ID: 0.044
• Contact Tip Length: 1.50 inches
• Inside Diameter Surface Tolerance: +/- 0.003
