Tweco 1560-1101 Mig Gas Diffuser 600A 16S Series

Product Description

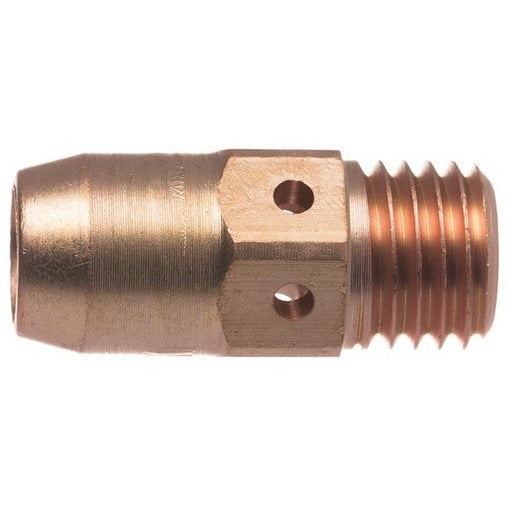

The TWECO 1560-1101 is a standard-duty gas diffuser designed for use with the Tweco No. 6 MIG gun series rated up to 600 amps. Machined from 145 tellurium copper alloy bar stock, it delivers consistent dimensional stability and reliable electrical conductivity across medium to heavy-duty welding applications. The part number is roll-stamped on the exterior surface for fast identification in the field. A conduit set screw secures a 5/64-inch conduit liner in place. This diffuser is sold in a pack of 5 units and is sized for demanding production welding environments where consistent gas coverage and electrical performance are critical.

This gas diffuser is intended for medium to heavy-duty MIG welding applications requiring up to 600 amps of continuous output. It is compatible with Tweco No. 6 MIG gun series equipment and Tweco Eliminator front-end consumable systems. Typical installations include industrial fabrication, structural welding, and heavy manufacturing environments where downtime from consumable failure must be minimized. The tellurium copper construction supports sustained high-amperage cycles without dimensional drift.

Key Features

• Rated for MIG welding applications up to 600 amps
• Machined from 145 tellurium copper alloy bar stock for consistent dimensional stability
• Part number roll-stamped on exterior surface for easy field identification
• Conduit set screw accommodates 5/64-inch conduit liner
• Compatible with Tweco Eliminator front-end consumable systems
• Sold as a pack of 5 units

Compatibility

Designed for use with the Tweco No. 6 MIG gun series and Tweco Eliminator front-end consumables, as specified by the manufacturer.

Installation Notes

Gas diffusers are installed and serviced by qualified welding technicians or maintenance personnel. Always power down the welding system and disconnect the gun from the wire feeder before replacing consumables. Ensure the conduit liner is fully seated and the set screw is snug before resuming operation. Follow the equipment manufacturer's guidelines for consumable inspection intervals to prevent arc faults and unplanned downtime.

Technical Specifications

• Amperage Rating: 600 amps
• Material: 145 tellurium copper alloy
• Conduit Liner Size: 5/64 inches
• Length: 0.6 inches
• Width: 1.4 inches
• Height: 0.6 inches
• Weight: 0.04 pounds
• Quantity per Pack: 5
• UPC: 608246080246

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1560-1101
