Tweco 1550-1102 Gas Diffuser 500 Amp Mig Welding

Product Description

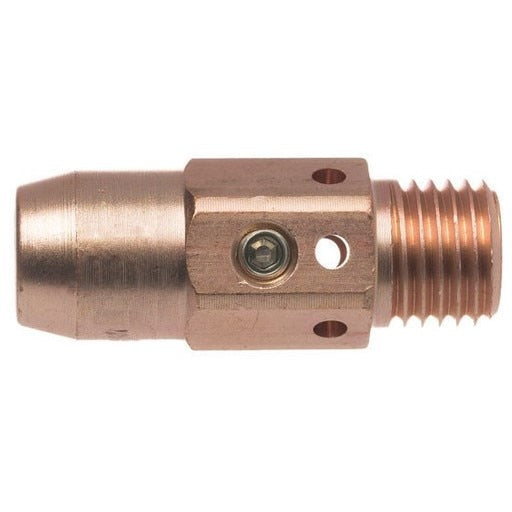

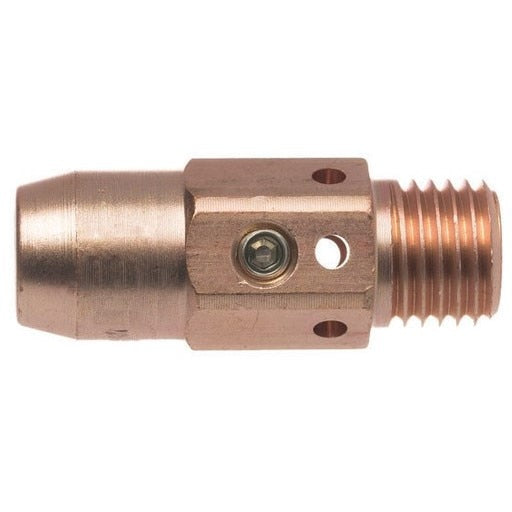

The TWECO 1550-1102 is a standard duty tellurium copper gas diffuser rated for MIG welding applications up to 500 amps. Machined from tellurium copper alloy bar stock, it delivers consistent dimensional stability and reliable electrical conductivity across medium to heavy duty welding cycles. The part number is rolled and stamped on the external surface for quick field identification. A conduit set screw secures a 3/32-inch conduit liner in place, and the unit features a properly threaded conductor tube for direct connection to compatible MIG guns. Sold in a pack of 5.

This gas diffuser is designed for medium to heavy duty MIG welding applications where sustained high-amperage output is required. It is compatible with the No. 5 MIG gun series and Eliminator front-end consumables. The diffuser works with 45H-332, 45H-764, and 45H-18 conduits, making it a fit for a range of standard MIG gun configurations in fabrication shops, structural welding, and industrial maintenance environments.

Key Features

• Rated up to 500 amps for medium to heavy duty welding
• Machined from tellurium copper alloy bar stock for consistent dimensional stability and electrical performance
• Part number rolled and stamped on external surface for fast identification
• Conduit set screw accommodates 3/32-inch conduit liner
• Threaded conductor tube for proper MIG gun connection
• Compatible with 45H-332, 45H-764, and 45H-18 conduits

Compatibility

Compatible with the TWECO No. 5 MIG gun series and Eliminator front-end consumables. Designed for use with 45H-332, 45H-764, and 45H-18 conduits.

Installation Notes

Installation is performed by a qualified welder or welding equipment technician. Disconnect and de-energize the MIG gun and power source before replacing any front-end consumables. Ensure the conduit liner is properly seated and secured with the set screw before resuming operation. Inspect the threaded conductor tube for wear or contamination at each consumable change interval.

Technical Specifications

• Current Rating: 500 amps
• Contact Tip Bore: 0.093 inches
• Material: Tellurium copper alloy
• Length: 0.6 inches
• Width: 1.4 inches
• Height: 0.6 inches
• Weight: 0.05 pounds
• Sold As: Pack of 5
• UPC: 608246080024

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1550-1102
