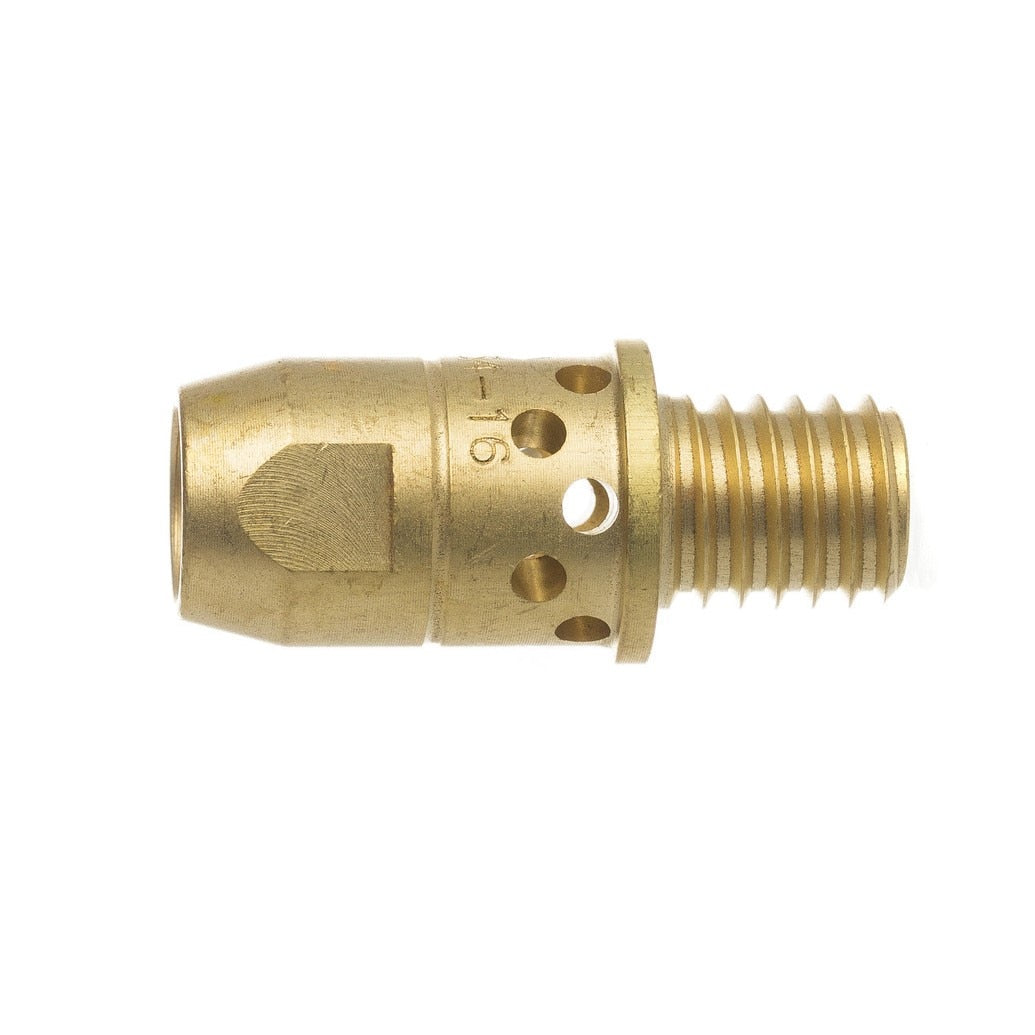

Tweco 1544-1126 Robotic Gas Diffuser 400A Mig

Product Description

The TWECO 1544-1126 is a robotic MIG gas diffuser rated for up to 400 amperes, designed for light to medium duty automated welding applications. Machined from 360 brass alloy bar stock, this diffuser delivers consistent dimensional stability across high-cycle robotic operations. It is part of the 16S series and is built to work with robotic and fixed automation MIG conductor tubes. The part number is rolled and stamped directly on the outer surface, making identification fast during maintenance and changeover. Licensed welders and automation technicians working with MIG robotic cells are the primary installers.

This gas diffuser is suited for light to medium duty welding environments where consistent gas coverage and dimensional repeatability are critical. It is designed for use with RWC24 series robotic and fixed automation nozzle assemblies, making it a direct fit for automated MIG welding cells operating at up to 400 amps. Its compact form factor supports tight robotic torch geometries common in production-line and fixture welding setups.

Key Features

• Rated up to 400 amperes for light to medium duty welding
• Machined from 360 brass alloy bar stock for consistent dimensional stability
• Compatible with RWC24 series robotic and fixed automation nozzle assemblies
• Designed for use with robotic and fixed automation MIG conductor tubes
• Part number rolled and stamped on outer surface for fast field identification

Compatibility

Designed for use with RWC24 series robotic and fixed automation nozzle assemblies and robotic MIG conductor tubes in light to medium duty automated welding applications up to 400 amperes.

Installation Notes

Installation should be performed by a qualified welding technician or automation maintenance professional. Power down and de-energize the welding system before removing or installing any torch consumables. Ensure the diffuser is fully seated and threaded to the conductor tube before resuming operation. Follow the torch manufacturer torque guidance and robotic cell lockout procedures per applicable facility safety standards.

Technical Specifications

• Amperage Rating: 400 amps
• Material: 360 brass alloy
• Length: 0.7 inches
• Width: 1.9 inches
• Height: 0.7 inches
• Weight: 0.04 pounds
• Series: 16S
• Sold As: Each
• UPC: 608246336497

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1544-1126
