Tweco 1140-1304 Mig Contact Tip 0.045 in 25 Pack

Product Description

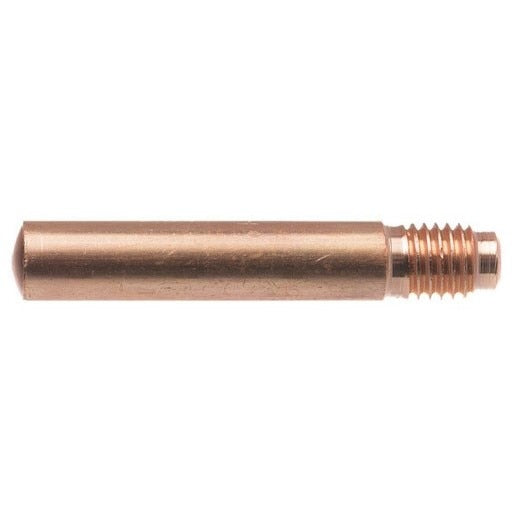

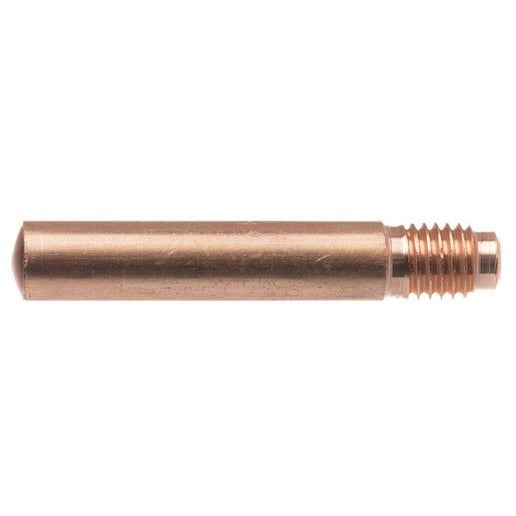

The TWECO 1140-1304 is a 14 Series Standard Duty Tapered Contact Tip designed for MIG welding applications up to 400 amps. It accepts 0.045-inch wire with a 0.054-inch nominal bore ID and measures 1.5 inches in length with a 0.25-inch OD. Machined from extruded or gun-drilled 122 DHP copper alloy tubing, the tip delivers a consistent, smooth inside diameter surface held to a tolerance of plus or minus 0.003 inches. The thick-walled construction acts as a heat sink, drawing heat away from the arc source for extended service life. Sold in a pack of 25.

This contact tip is suited for standard MIG welding environments in both fabrication shop and production settings. The 0.25-28 UNF-2A threaded style ensures positive contact with a gas diffuser when installed on a MIG gun. The tip is compatible with Tweco No. 2, No. 3, and No. 4 MIG guns rated from 200 to 400 amps, as well as specific Tweco MIG gun series. Each tip is stamped with the part number and wire diameter for fast field identification during consumable changes.

Key Features

• Accepts 0.045-inch MIG wire with 0.054-inch nominal bore and plus or minus 0.003-inch ID tolerance
• 122 DHP copper alloy construction machined from tubing for consistent, smooth bore surface
• Thick-walled design acts as a heat sink to conduct heat away from the arc source
• Quarter-turn twist exposes a new wear point when the first wear point is reached, doubling tip service life
• Threaded 0.25-28 UNF-2A connection locks in place against gas diffuser for increased electrical contact area
• Each tip stamped with part number and wire diameter for easy identification

Compatibility

Designed for use with Tweco No. 2, No. 3, and No. 4 MIG guns rated 200 to 400 amps. Compatible with slip-on and thread-on nozzle styles. Intended for use with 0.045-inch MIG welding wire.

Installation Notes

Installation is performed by a qualified MIG welder or welding technician. Always power down the welding machine and allow the gun to cool before replacing contact tips. Thread the tip into the gas diffuser by hand until snug, then verify positive seating with a quarter-turn lock. Inspect the bore for wear or spatter buildup at each consumable change to maintain consistent wire feed and arc quality.

Technical Specifications

• Wire Diameter: 0.045 inches
• Bore ID (Nominal): 0.054 inches
• ID Tolerance: plus or minus 0.003 inches
• Tip Length: 1.5 inches
• Tip OD: 0.25 inches
• Thread Size: 0.25-28 UNF-2A
• Material: 122 DHP Copper Alloy
• Current Rating: 400 amps maximum
• Weight: 0.02 pounds
• Quantity per Pack: 25

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1140-1304
