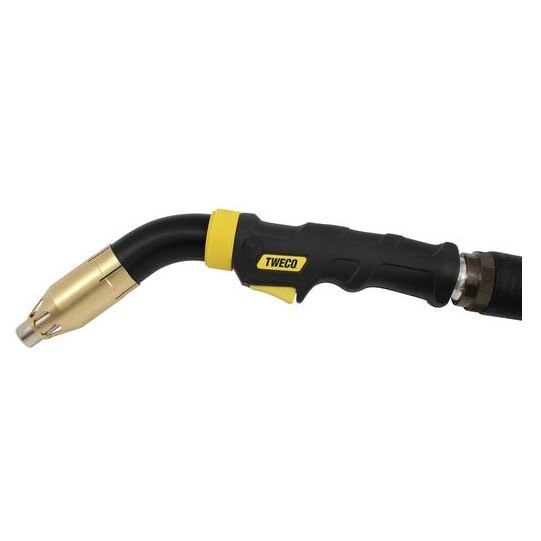

Tweco 1026-1141 Fume Extraction Mig Gun 15 Ft

Product Description

The TWECO 1026-1141 is a water-cooled fume extraction MIG gun designed to capture welding fumes directly at the weld source. Part of the Centrovac 420Cw series, it handles light-, medium-, and heavy-duty MIG welding applications with a 15-foot cable and Euro-style back-end connection. Wire diameter compatibility spans 0.039 to 0.0625 inches. The high-flow water-cooling circuit allows front-end consumables to cool rapidly, extending consumable life up to three to five times longer compared to standard air-cooled guns. Licensed welding professionals and certified fabricators install this gun in production environments where fume control and welder visibility are operational priorities.

This gun is suited for demanding industrial environments including shipbuilding and offshore fabrication, tank and vessel fabrication, aerospace manufacturing, transportation, and general manufacturing. The Euro back-end connection adapts to most competitive wire feeders and power sources, making it a practical upgrade or replacement in existing MIG welding cells. The water-cooled design supports extended duty cycles, and the vacuum vent at the front of the handle lets the operator fine-tune extraction rates on the fly, which is especially useful in confined or tight weld areas where over-extraction of shielding gas is a concern.

Key Features

• Fume extraction at the weld source removes over 95 percent of fumes when paired with the correct extraction system
• Water-cooled front end extends consumable life up to 3 to 5 times longer than air-cooled alternatives
• Vacuum vent at the front of the handle allows real-time adjustment of extraction rate
• Euro back-end connection adapts to most competitive wire feeders and power sources
• Back-end design prevents fumes from reaching the power connection, reducing maintenance frequency
• Ergonomic, knuckle-joint handle provides a balanced grip and full articulate motion during welding

Compatibility

The 1026-1141 uses a Euro-style back-end connection and is designed to adapt to most competitive wire feeders and power sources. Optional fume shrouds are available for optimized extraction across different weld applications.

Installation Notes

Installation and setup should be performed by a qualified welding professional familiar with MIG welding equipment and fume extraction systems. Disconnect and de-energize the welder and shut off the water-cooling supply before connecting or disconnecting the gun. Verify that the extraction system is properly sized for the application before use, and confirm Euro connection torque at the feeder according to the feeder or power source manufacturer guidelines. Consult applicable workplace safety standards and local codes for fume extraction requirements in enclosed or confined welding areas.

Technical Specifications

• Wire Diameter Range: 0.039 to 0.0625 inches
• Cable Length: 15 feet
• Connection Type: Euro
• Cooling Method: Water-cooled
• Package Dimensions: 18.9 inches x 19.69 inches x 4.33 inches
• Package Weight: 14.29 pounds
• Sold As: Each
• UPC: 608246445533

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1026-1141
