Tweco 1026-1139 Fume Extraction Mig Gun 10 Ft Euro

Product Description

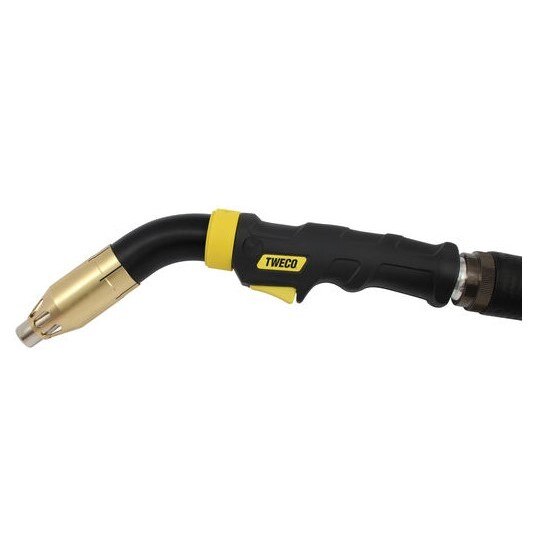

The TWECO 1026-1139 is a water-cooled fume extraction MIG gun designed to capture welding fumes directly at the weld source before they disperse into the work area. Built around the Centrovac 420C platform, this gun is rated for light-, medium-, and heavy-duty MIG welding applications. The water-cooled design allows front-end consumables to cool rapidly, extending consumable service life significantly compared to standard air-cooled guns. Wire diameter compatibility spans 0.039 inches to 0.0625 inches, and the gun ships with a 10-foot cable assembly terminating in a Euro-style connection. Installation and operation are straightforward for professional welders and fabricators working in regulated or production environments.

This gun is suited for professional welding applications where fume control is a regulatory or safety priority. Typical deployment environments include shipyards, offshore fabrication, aerospace assembly, tank and vessel fabrication, transportation manufacturing, and general production shops. The Euro back-end connection adapts to most competitive wire feeders and power sources. The gun is engineered for sustained production use where welder visibility, air quality compliance, and consumable uptime all directly affect output.

Key Features

• Water-cooled design extends front-end consumable life up to 3 to 5 times longer than comparable air-cooled guns
• Over 95% of welding fumes can be removed at the source when paired with a correctly matched extraction system
• Vacuum vent at the front of the handle allows the operator to fine-tune extraction rate and prevent excessive shielding gas loss in confined areas
• Euro back-end connection adapts to most competitive wire feeders and power sources with minimal modification
• Knuckle-joint configuration provides articulate motion and an ergonomic, well-balanced grip for extended use
• Optional fume shroud accessories available to optimize extraction performance for specific weld geometries

Compatibility

Designed for use with competitive wire feeders and power sources equipped with Euro-style connections. Compatible wire diameters range from 0.039 inches to 0.0625 inches. Specific feeder and power source model compatibility should be confirmed against the Centrovac 420C connection adapter options prior to installation.

Installation Notes

Installation should be performed by a qualified welding equipment technician or experienced welder-operator familiar with MIG gun connections and fume extraction systems. Disconnect and lock out the welding power source and wire feeder before connecting or removing the gun. Verify that the extraction system flow rate is appropriate for the application to avoid drawing down shielding gas coverage at the arc. Follow all applicable shop safety and ventilation codes when integrating fume extraction equipment into a production cell.

Technical Specifications

• Wire Diameter Range: 0.039 inches to 0.0625 inches
• Cable Length: 10 feet
• Connection Type: Euro
• Cooling Method: Water-cooled
• Package Weight: 10.91 pounds
• Package Length: 18.9 inches
• Package Width: 4.33 inches
• Package Height: 19.69 inches
• UPC: 608246445519
• Sold As: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1026-1139
