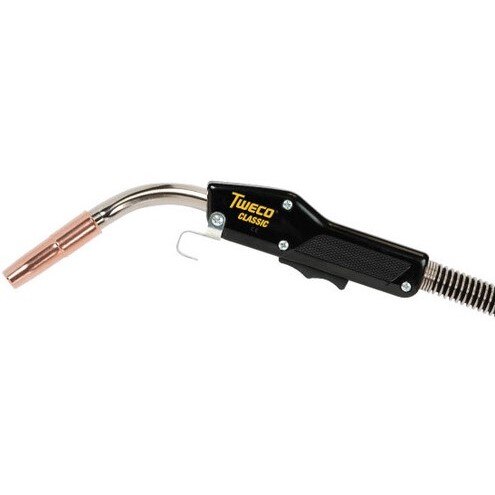

Tweco 1020-1132 Mig Gun 200A 12 Ft Miller Connection

Product Description

The TWECO 1020-1132 is a Professional No. 2 Series air-cooled MIG gun rated at 200 amps with a 60% duty cycle when used with CO2 shielding gas. It accommodates wire diameters from 0.030 to 0.035 inches and ships with a 12-foot lead cable featuring a Miller-style rear connection. The gun is designed for semi-automatic GMAW in medium fabrication environments. Key construction details include a 3-layer conductor tube, a 60-degree metal jacket conductor tube that swivels 360 degrees around the handle, and a fully insulated Mig-Kwik connection for fast attachment and detachment at the wire feeder. Licensed welders and professional fabricators install and service this gun.

The 1020-1132 targets medium-duty production and fabrication work including shop jobs, maintenance and repair, and light industrial applications such as farm equipment service, garage work, and artistic metalworking. The Miller-style rear connection makes it a direct fit for compatible Miller wire feeder setups. The oval-shaped, impact-resistant handle is balanced to pivot at the center, reducing grip fatigue during extended welding operations. A gun hanger at the bottom of the handle allows the operator to rest the gun safely between passes.

Key Features

• 200A output rating with 60% duty cycle on CO2 gas, suitable for medium fabrication workloads
• Accepts 0.030 to 0.035 inch wire for common MIG welding diameters
• 60-degree metal jacket conductor tube with full 360-degree handle swivel for positional welding
• Silver-plated trigger contacts provide self-cleaning action each time the trigger is cycled
• Steel spring strain relief supports the Cablehoz at the rear of the handle to minimize wire feed issues
• Two ball-point screws lock the Cablehoz and conductor tube in place for a secure, consistent current path
• Fully insulated Mig-Kwik connection allows tool-free attachment and detachment at the wire feeder

Compatibility

Designed for use with Miller-style wire feeder connections. The 12-foot lead cable and Miller rear connection style make this gun a drop-in replacement for compatible Miller feeder configurations in semi-automatic GMAW setups.

Installation Notes

Installation and service should be performed by a qualified welding technician or trained operator. Always power down and de-energize the wire feeder before connecting or disconnecting the gun. Inspect the conductor tube, Cablehoz, and contact tip for wear before placing the gun into service. Follow applicable AWS and OSHA guidelines for GMAW equipment setup and safe operation.

Technical Specifications

• Amperage: 200A
• Duty Cycle: 60% with CO2 gas
• Wire Diameter Range: 0.030 to 0.035 inches
• Lead Length: 12 feet
• Rear Connection Style: Miller
• Conductor Tube Angle: 60 degrees
• Cooling Method: Air-cooled
• Package Weight: 8.6 pounds
• Package Length: 23 inches
• Package Width: 14.5 inches
• Package Height: 3.2 inches
• UPC: 608246012162

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1020-1132
