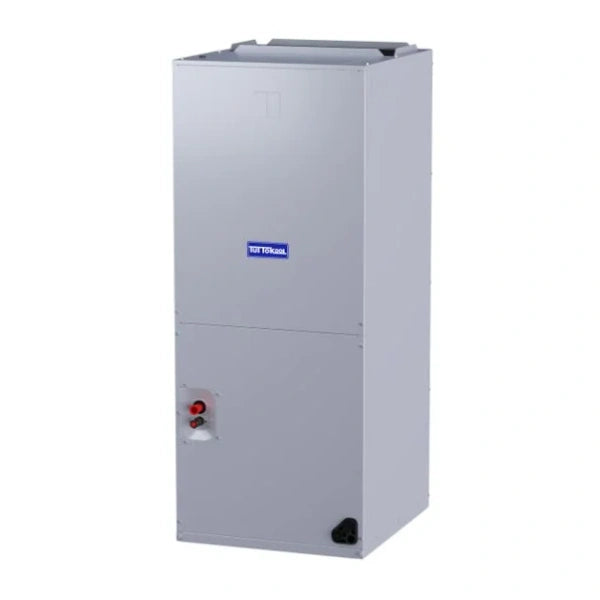

Tuttokool A4AH4P60E1B00A Air Handler 5 Ton Multi-Position Indoor Unit

Product Description

The TUTTOKOOL A4AH4P60E1B00A is a 5-ton multi-position air handler, designed for high performance and durability in residential or light commercial HVAC systems. Constructed with a galvanized steel cabinet with powder coating, it has been subjected to 1000 hours of salt spray testing to ensure corrosion resistance. Operates with R-410A refrigerant.

• 5 ton capacity
• Multiple installation configurations
• Multi-speed PSC motor

Product Highlights

The TUTTOKOOL A4AH4P60E1B00A air handler is ETL certified for safety and AHRI listed for efficiency.

Product Information

Standard Information

• Brand: TUTTOKOOL
• Manufacturer Part Number: A4AH4P60E1B00A

Technical Specifications

• Brand: TUTTOKOOL
• Model: A4AH4P60E1B00A
• Cooling Capacity: 5 Ton
• Motor Type: PSC Multivelocidad
• Installation Type: Multi-Position (Vertical & Horizontal)
• Refrigerant Type: R-410A
• Cabinet: Acero galvanizado con pintura en polvo (1000 h salt spray)
• Applications: Indoor unit for residential / light commercial HVAC systems
• Electrical Phase(s): 1-Phase
• Liquid Valve Size (Inches): 3/8
• Amp(s): 15
• Blower: Multi-Speed
• Height (Inches): 54 1/2
• Width (Inches): 22
• Depth (Inches): 24
• Category: Air Handlers
