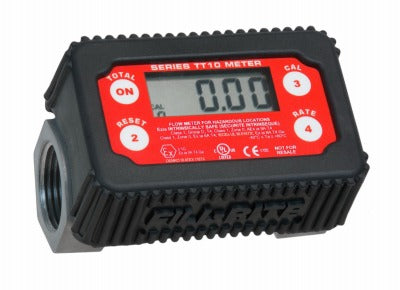

Tuthill Corp TT10AN Digital Inline Turbine Fuel Meter

Product Description

The TUTHILL CORP TT10AN is a digital electronic inline turbine meter designed for accurate fluid measurement in fuel dispensing and transfer applications. It features a 1 inch NPT inlet and outlet, allowing installation at the end of a hose or plumbed into a fixed pipe system. The meter supports 20 pre-set calibration factors based on fluid type and can also be field-calibrated for site-specific accuracy. Powered by two AA batteries, the unit includes a low battery alert to prompt timely replacement. Licensed plumbers and fuel equipment technicians are the primary installers of this device.

The TT10AN is suited for residential and commercial fuel transfer setups where gasoline, diesel, or kerosene is dispensed. It performs equally well in portable hose-end configurations or permanent fixed-pipe installations. The 1 inch NPT connections make it compatible with standard fuel dispensing plumbing. The pre-set calibration options reduce setup time across multiple fluid types, while the field calibration capability allows techs to fine-tune accuracy without returning the unit to a shop or lab.

Key Features

• Electronic inline turbine design for accurate volumetric fuel measurement
• 1 inch NPT inlet and outlet for hose-end or fixed-pipe installation
• 20 pre-set calibration factors covering gasoline, diesel, and kerosene
• Field-calibration capability for on-site accuracy adjustment
• Two AA batteries power the digital display with low battery alert notification
• UL listed for use in fuel dispensing environments

Compatibility

Designed as an OEM-style inline turbine meter for fuel transfer systems using 1 inch NPT plumbing connections with gasoline, diesel, or kerosene as the working fluid.

Installation Notes

Installation should be performed by a licensed plumber or qualified fuel equipment technician familiar with applicable codes for flammable liquid handling. Shut off all fuel supply and relieve line pressure before making any connections. Ensure thread sealant rated for petroleum products is used on all NPT connections. Do not overtighten fittings, and verify flow direction matches the meter's rated inlet orientation before startup.
