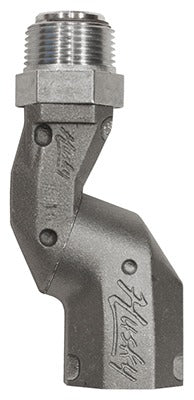

Tuthill Corp S100H1315 Hydraulic Hose Swivel 1 Inch

Product Description

The TUTHILL CORP S100H1315 is a multi-plane hydraulic hose swivel designed for demanding fluid-transfer applications where hose movement and rotation are critical to system longevity. Rated for arctic conditions down to -40 degrees F/-40 degrees C, this swivel provides full 360-degree rotation to relieve torsional stress on hydraulic hoses. The swivel connection is compatible with hose nozzle assemblies to extend reach and freedom of movement while actively preventing hose kinking. It ships as a single unit and weighs 1 pound.

This hose swivel is suited for hydraulic systems operating in cold-weather environments, including outdoor industrial equipment, agricultural machinery, and utility vehicles exposed to sub-zero temperatures. The multi-plane design allows movement across multiple axes, making it appropriate for installations where the hose must articulate in more than one direction during normal operation. Technicians working on mobile hydraulic equipment in northern climates or refrigerated environments will find the arctic rating particularly relevant to year-round serviceability.

Key Features

• Arctic rated to -40 degrees F/-40 degrees C for cold-environment service
• Full 360-degree rotation reduces torsional stress and extends hose service life
• Multi-plane swivel action accommodates movement across multiple axes
• Compatible with hose nozzle connections for greater freedom of movement
• Prevents hose kinking at the connection point during operation

Compatibility

Designed as an OEM-style replacement or aftermarket swivel fitting for 1-inch hydraulic hose assemblies used in mobile and stationary hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with hydraulic fittings and system pressure requirements. Depressurize the hydraulic system completely and relieve any residual pressure before removing or installing hose fittings. Ensure threads are clean and free of damage before making connections, and verify torque requirements against the equipment manufacturer specifications. Follow applicable industry standards for hydraulic fitting installation and inspect for leaks after returning the system to service.
