Turbo Torch 0386-0839 Torch Kit Rl-p Regulator Hvac

Product Description

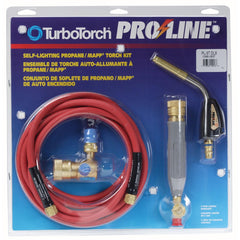

The TURBO TORCH 0386-0839 is a Proline series torch kit built for professionals who need reliable, high-heat performance in the field. It uses TurboTorch Os Swirl Combustion technology, which promotes efficient, controlled flame output. The kit ships ready to work, including an RL-P Regulator with CGA-510 fitting, an H-4 handle, an H-12 hose, a PL-5T tip with quick-disconnect, and an instruction manual. The CGA-510 regulator accepts MAP-Pro and propane, giving the tech flexibility to match fuel to task. HVAC technicians, light fabricators, and skilled hobbyists are the primary users of this kit.

This kit is suited for a wide range of brazing, soldering, and light fabrication tasks. HVAC technicians use it for refrigerant line brazing and copper tubing work on residential and light commercial systems. The quick-disconnect tip design allows fast tip swaps without shutting down the regulator, which saves time during multi-step jobs. The included PL-5T tip covers common mid-range heating demands, and additional Proline-series tips can extend the work range further when the job calls for it.

Key Features

• Os Swirl Combustion technology delivers efficient, controlled flame performance
• RL-P Regulator with CGA-510 fitting accepts MAP-Pro and propane fuel cylinders
• PL-5T tip includes quick-disconnect for fast, tool-free tip changes
• H-4 handle and H-12 hose included for a complete, ready-to-use setup
• Suitable for HVAC brazing, light fabrication, and hobbyist applications

Compatibility

Designed for use with MAP-Pro and propane fuel sources via the CGA-510 cylinder connection. Compatible with other Proline-series tips featuring quick-disconnect fittings to expand heating range beyond the included PL-5T tip.

Installation Notes

This torch kit should be set up and operated by a qualified technician familiar with gas equipment and applicable safety codes. Always inspect hose and regulator connections for leaks before igniting the torch. Keep the work area clear of flammable materials and ensure adequate ventilation when brazing or soldering in enclosed spaces. Follow all cylinder handling and storage requirements as directed by the fuel manufacturer and local code.

Technical Specifications

• Regulator: RL-P, CGA-510 fitting
• Compatible Fuels: MAP-Pro, Propane
• Included Components: RL-P Regulator, H-4 Handle, H-12 Hose, PL-5T Tip with Quick-Disconnect, Instruction Manual
• Length: 14.2 inches
• Width: 9.5 inches
• Height: 9.7 inches
• Weight: 3.85 pounds
• Sold As: Each
• UPC: 716352140201

Standard Information

• Brand: TURBO TORCH
• Manufacturer Part Number: 0386-0839
