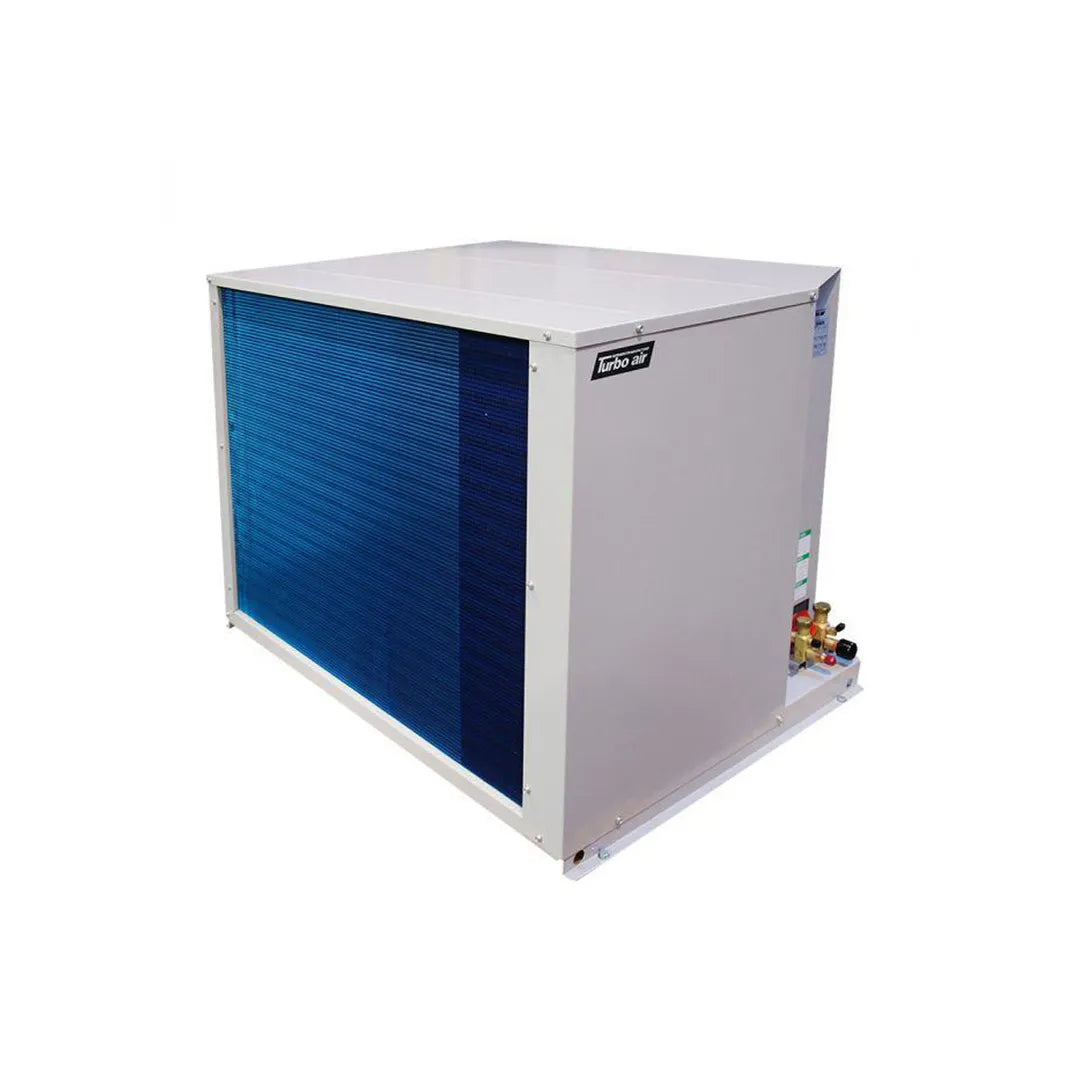

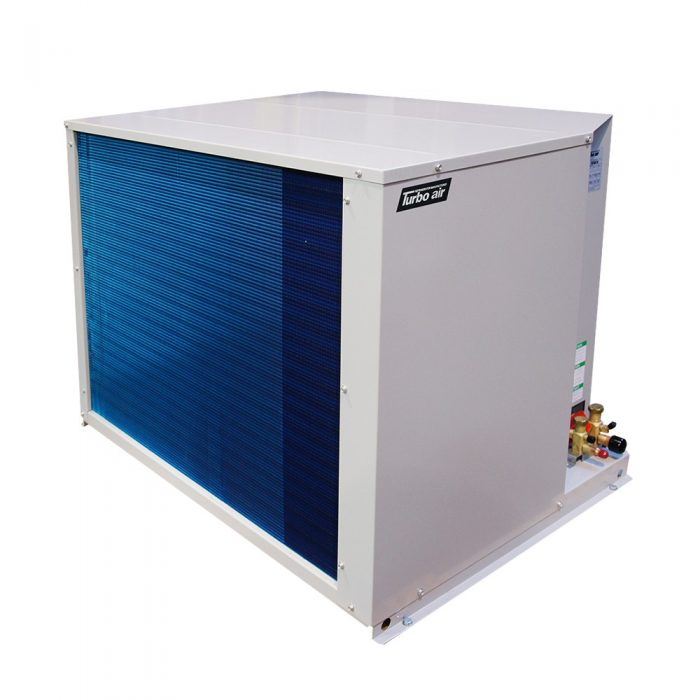

Turbo Air TS030MR404A2-T condensing unit 3 HP

Product Description

The Turbo Air TS030MR404A2-T is a 3 HP extended medium temp condensing unit featuring a Copeland compressor. Designed for maximum efficiency, it includes a blue anti-corrosion fin to increase coil lifespan and a seamless inner groove copper tube to enhance heat exchange. The unit has a condenser fan ON/OFF switch for stable operation.

• Blue anti-corrosion fin increases coil lifespan.
• Seamless inner groove copper tube enhances heat exchange.
• Condenser Fan ON/OFF switch maintains constant condensing pressure.

Product Highlights

This Turbo Air condensing unit ensures efficient and stable operation with its quality components and thoughtful design.

Product Information

Standard Information

• Brand: TURBO AIR
• Manufacturer Part Number: TS030MR404A2
• Country of Origin: China

Technical Specifications

• Capacity BTU 25 SST: 27478
• Fan CFM: 3794
• Fan quantity: 1
• HP: 3
• Compressor: Copeland 4595.15.15 SST
• RLA (Compressor): 23.2
• LRA (Compressor): 112.0
• Line Set connections size Inlet: 5/8 OD
• Line Set connections size Suction: 1 OD
• Refrigerant Type: R448a/R449a, R404a
• Manufacturer: Turbo Air
• Model Number: TS030MR404A2-T
• Compressor Type: scroll
• Compressor HP: 3 HP
• Temperature: medium temp
• Phase: 1
• Voltage: 208-230
• Power Phase: 1 Phase
• Country of Origin: China
