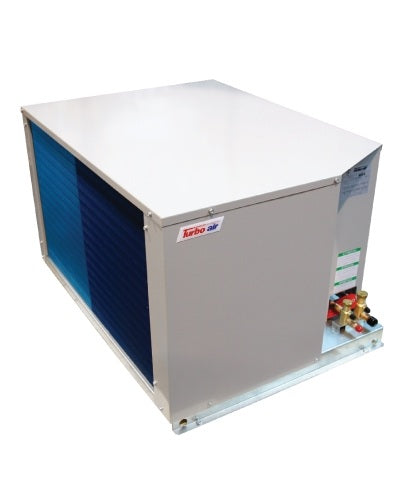

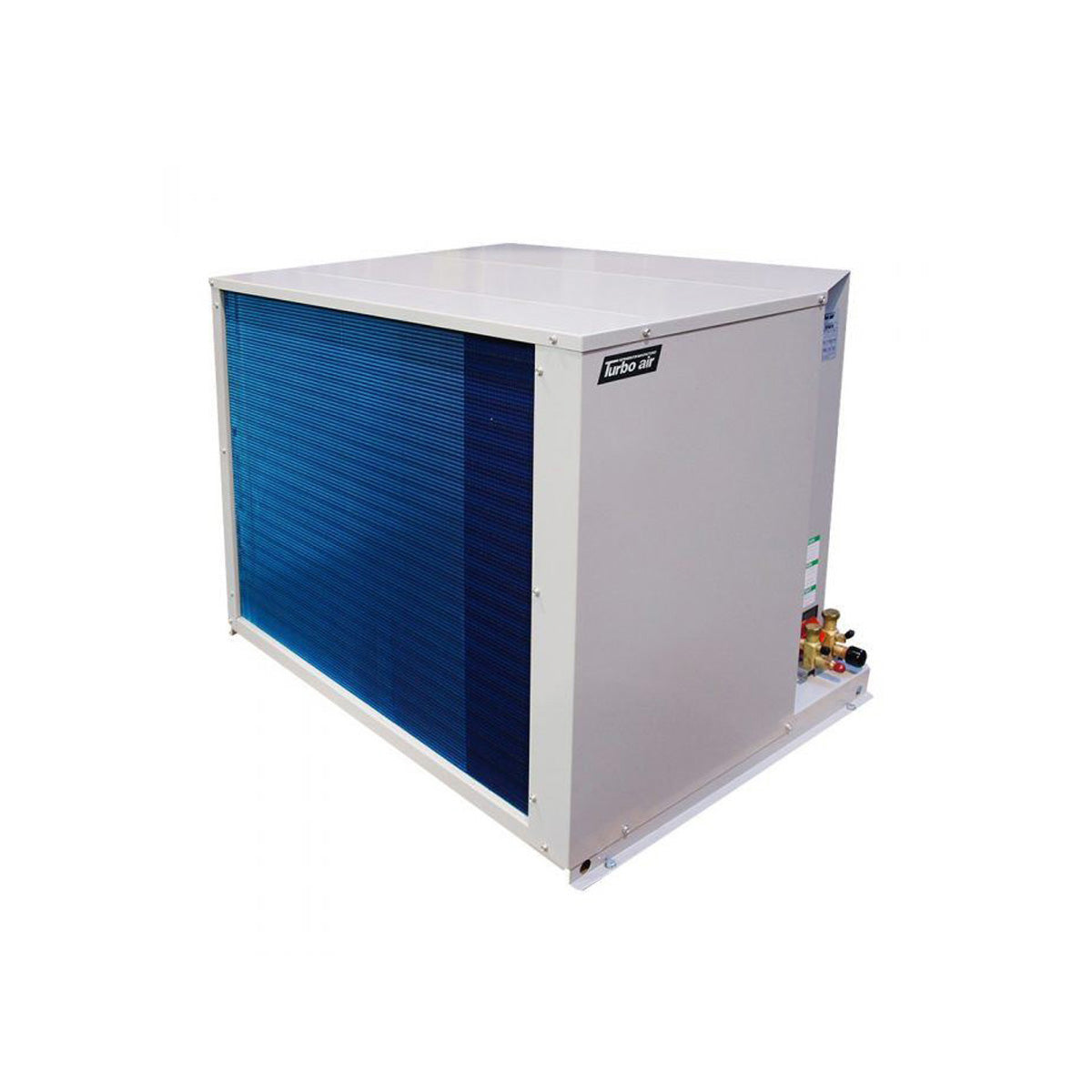

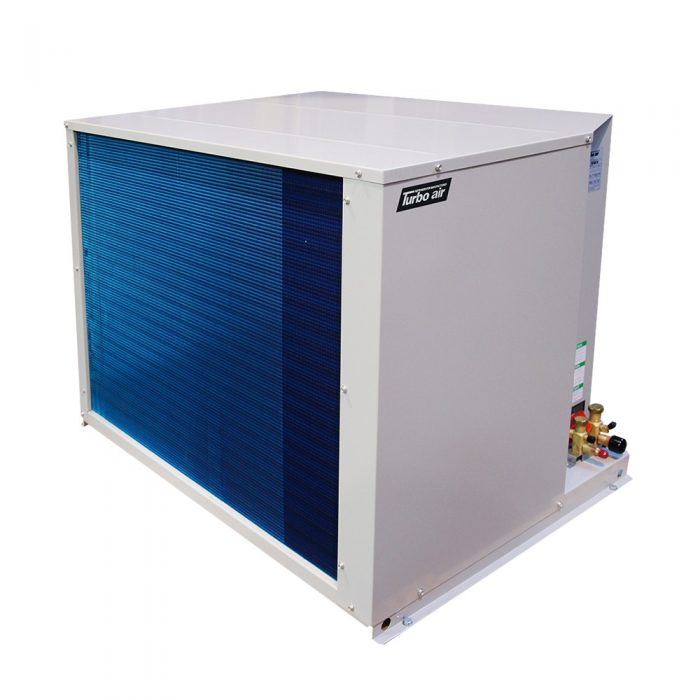

Turbo Air TS025XR404A2A low temperature condensing unit with scroll compressor 2.5 hp

Product Description

The TURBO AIR TS025XR404A2A is a 2.5 HP Low Temperature Condensing Unit featuring a Scroll Compressor, operating at 208-230V/1Ph/60Hz. This unit is designed for efficient cooling applications, incorporating blue anti-corrosion fins to extend coil lifespan and a seamless inner groove copper tube for enhanced heat exchange. It includes head pressure control to stabilize liquid line freezing and prevent compressor damage, ensuring system efficiency and longevity. The heavy-duty steel base and galvanized cabinet provide corrosion protection.

• Blue anti-corrosion-fin increases the life span of the coil.
• Seamless inner groove copper tube increases the heat exchange rate by reducing the space between the fin and copper tube.
• Head pressure control stabilizes the freezing of liquid line, minimizes formation of flash gas to increase efficiency of the system, and prevents compressor damage by controlling high pressure.

Product Highlights

This 2.5 HP low temperature condensing unit features a scroll compressor, anti-corrosion fins, and head pressure control for efficient and durable operation.

Product Information

Standard Information

• Brand: TURBO AIR
• Manufacturer Part Number: TS025XR404A2A

Technical Specifications

• Horsepower: 2.5 HP
• Compressor Type: Scroll
• Input Voltage: 208-230V
• Phase: 1
• Frequency: 60 Hz
• Application: Low Temperature Condensing Unit
• Base Material: Heavy duty steel
• Leg Height: 2-1/6 inches
• Cabinet Material: Prepainted galvanized body
• Certifications: UL, cUL, ISO 9001
• Cooling Capacity BTU (-20°F SST): 8702
• Fan Airflow CFM: 2936
• Fan Quantity: 2
• Compressor Model: Copeland ZF08K4E
• Compressor Amperage: 16.4 RLA, 73.0 LRA
• MCA/MOPD: 21.4/30
• Line Set Inlet Connection: 5/8 inch OD
• Line Set Suction Connection: 1 inch OD
• Refrigerant Type: R448a/R449a, R404a
• Application Temperature: Low Temperature
