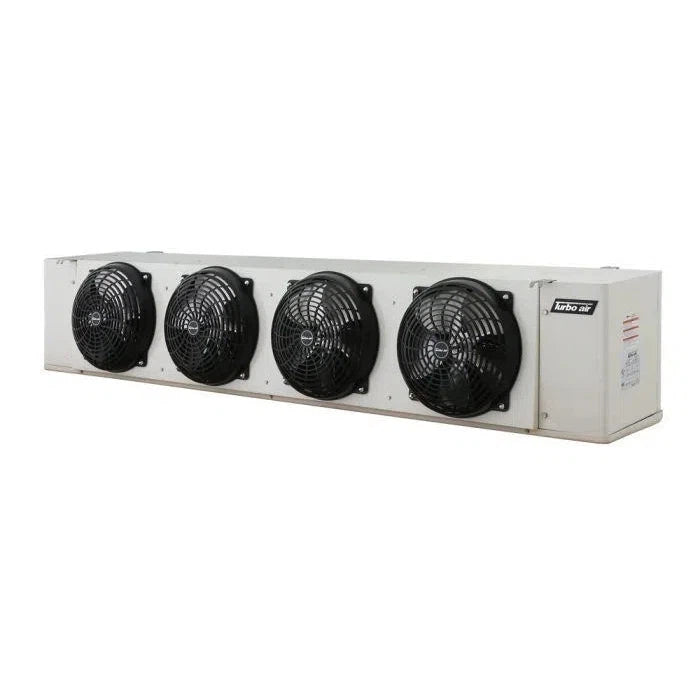

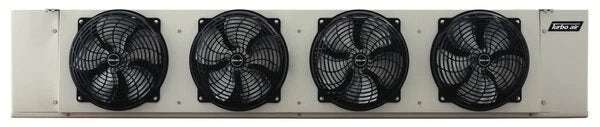

TURBO AIR ADR258AENM Low Profile Refrigeration Evaporator Coil

Product Description

The TURBO AIR ADR258AENM is a low-profile refrigeration evaporator coil suitable for walk-in cooler applications. This unit has a cooling capacity of twenty-five thousand eight hundred BTU and operates on one hundred fifteen volts at sixty hertz with a single phase. The evaporator coil includes an energy-efficient dual-speed EC motor and features four fans for optimal air circulation.

• BTU Capacity: 25,800
• Equipped with four fans for enhanced airflow
• Compatible with R448A and R449A refrigerants

Product Highlights

Designed for efficient cooling in commercial refrigeration settings, this model is ideal for maintaining proper temperature in walk-in cooler spaces.

Product Information

Standard Information

• Brand: Turbo Air
• Model: ADR258AENM

Technical Specifications

• Equipment Type: Walk-in cooler evaporator
• Cooling Capacity (BTU): 25,800
• Fan CFM: 3,088
• Number of Fans: 4
• Motor HP: 0.04
• Total Amps: 3.00
• Power Consumption: 100 Watts
• Connection Size Inlet: 1/2 OD
• Connection Size Suction: 1 OD
• Connection Size Drain: 3/4 MPT
• Approximate Net Weight: 87 lbs
• Refrigerant Type: R404a, R448a, R449a
• Input Voltage: 115V/60Hz/1Ph
