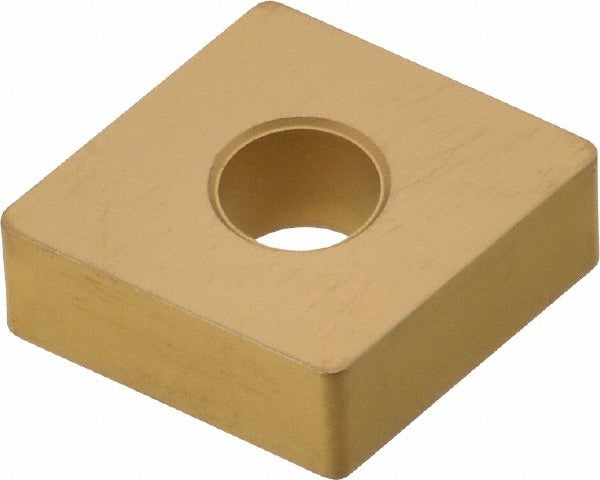

Tungaloy 6850153 CNMA542 T5125 Carbide Turning Insert

Product Description

The TUNGALOY 6850153 is a CNMA-style indexable turning insert manufactured from solid carbide and finished with a multilayer CVD coating of TiCN, Al2O3, and TiN under the proprietary T5125 grade designation. The insert features an 80-degree diamond shape, a 5/8-inch inscribed circle, and a 1/32-inch corner radius, with a neutral hand orientation and a flat-top chip breaker geometry. It carries a negative rake angle and a honed cutting edge, making it well suited for stable, consistent material removal in demanding turning applications. This insert is designed for licensed machinists and tooling technicians working on CNC lathes and manual turning centers.

This insert is intended for turning, facing, and boring operations, with cast iron identified as the primary workpiece material. The T5125 grade aligns with material grades K15 and K30, which cover a range of cast iron types from gray to nodular. It uses a clamp and pin holding method and is held to ANSI and ISO dimensional standards, making it compatible with standard CNMA toolholders used in both production and job-shop environments. Each insert provides four usable cutting edges, improving cost efficiency per edge across high-volume or repetitive operations.

Key Features

• Multilayer CVD coating: TiCN plus Al2O3 plus TiN for wear resistance and thermal stability
• 80-degree diamond insert shape with four cutting edges for maximum indexing value
• Negative rake, honed edge prep for improved edge strength on cast iron
• Flat-top chip breaker geometry for predictable chip control in turning and facing
• Clamp and pin holding method for secure seating in standard CNMA toolholders
• Meets ANSI and ISO standards under industry number CNMA 542

Compatibility

Designed for use in standard CNMA-style toolholders that accept a 5/8-inch inscribed circle insert with a 1/4-inch thickness and clamp or pin retention. Suitable for turning, facing, and boring operations on cast iron workpieces. Compatible with toolholder systems conforming to ANSI and ISO CNMA 542 specifications.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque wrench and clamping hardware specified by the toolholder manufacturer to seat the insert securely against the pocket. Inspect the insert pocket and clamp pin for wear or debris before seating a fresh cutting edge.
