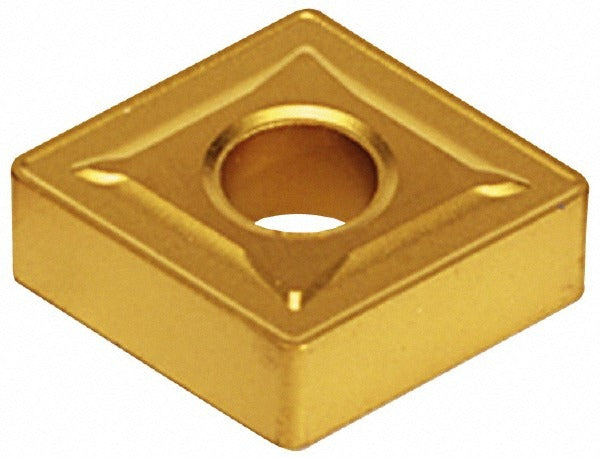

Tungaloy 6802239 Turning Insert CNMG543 AH120 Carbide

Product Description

The TUNGALOY 6802239 is a solid carbide turning insert in the CNMG543 geometry with AH120 grade and a PVD-applied TiAlN coating. It features an 80-degree diamond shape (insert shape code C), a negative rake angle of -15 degrees, and a chamfered and honed cutting edge style. The inscribed circle measures 0.625 inches, insert length is 0.634 inches, thickness is 0.250 inches, and the corner radius is 0.047 inches (3/64 inch). Designed for use in CNC turning, facing, and boring operations, this insert is installed by machinists and toolroom technicians working in production and job-shop environments.

The CNMG543 AH120 insert is suited for turning, facing, and boring applications across a broad range of workpiece materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Its ISO material grade designations cover P15, P25, M15, M25, K15, K30, S10, and S25, making it a versatile option across general and difficult-to-machine materials. The neutral hand orientation and four available cutting edges support efficient use in standard CNMG toolholders. Maximum depth of cut is 0.236 inches.

Key Features

• TiAlN PVD coating on AH120 carbide grade for wear resistance and thermal stability
• 80-degree diamond insert shape with negative rake for strength in interrupted and continuous cuts
• Four cutting edges per insert for extended tool life per unit
• Chamfered and honed cutting edge preparation reduces chipping on entry
• Compatible with clamp and pin insert holding methods
• Multi-use application: turning, facing, and boring from a single insert geometry

Compatibility

Designed as a direct-fit replacement for CNMG543 geometry toolholders using clamp or pin holding methods, conforming to ANSI and ISO standards for CNMG 543 inserts. ISO code CNMG 543 and ANSI equivalents apply.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Power down and lock out the machine spindle before seating or removing inserts. Use the appropriate torx or hex wrench specified by the toolholder manufacturer when tightening the clamp or pin - do not overtighten. Inspect the insert pocket and seating surfaces for chips or debris before installing a new edge or rotating to a fresh cutting edge.
