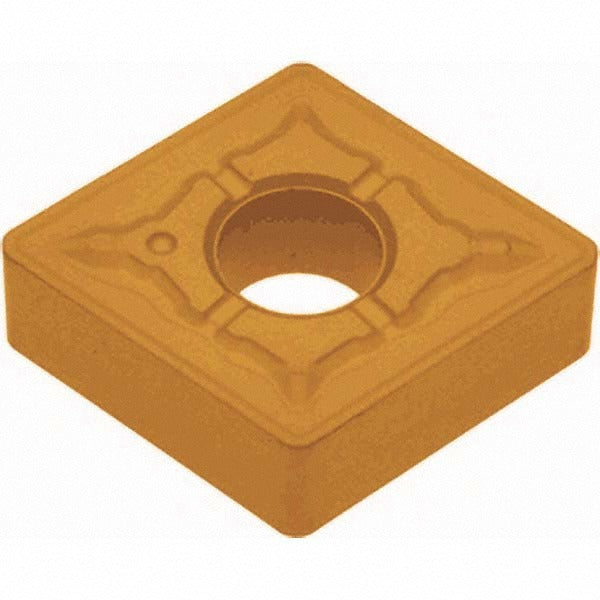

Tungaloy 6780833 Cnmg 432 Th T9225 Carbide Turning Insert

Product Description

The TUNGALOY 6780833 is a CNMG 432 TH indexable turning insert in grade T9225, designed for external turning, facing, and boring operations on CNC lathes and turning centers. The insert features a multilayer CVD coating - TiN, TiCN, and Al2O3 TiN - applied over a solid carbide substrate, delivering wear resistance and thermal stability across a range of cutting conditions. The 80-degree diamond shape provides four cutting edges per insert. The TH chip breaker geometry, chamfered and honed cutting edge, and negative rake angle (-20 degrees) make this insert well suited for moderate to roughing cuts on difficult materials.

This insert is intended for machining steel, stainless steel, and cast iron, corresponding to ISO material groups P and M and K (material grades P15 and P25). Typical applications include general-purpose turning and facing on production runs where consistent tool life across multiple workpiece materials is required. The TH chip breaker is designed to handle chip control in continuous and semi-interrupted cuts at moderate depths up to 0.2362 inches. It is held by clamp and pin methods and complies with ANSI and ISO standards for the CNMG 432 insert family.

Key Features

• Multilayer CVD coating (TiN / TiCN / Al2O3 / TiN) for wear and thermal resistance
• 80-degree diamond insert shape with four usable cutting edges
• TH chip breaker geometry optimized for steel, stainless steel, and cast iron
• Chamfered and honed cutting edge with -20-degree rake angle for stability
• Compatible with clamp and pin toolholders per ANSI and ISO CNMG 432 standards
• Multi-use capability: turning, facing, and boring in a single insert grade

Compatibility

Designed for use in ANSI- and ISO-standard CNMG 432 toolholders that accept clamp and pin insert retention. Compatible with turning, facing, and boring operations per CNMG-TH series specifications.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque wrench for the clamp screw to avoid cracking the carbide substrate - refer to the toolholder manufacturer's specification for torque values. Inspect the insert pocket and seating surface for chips or debris before seating a new insert edge.
