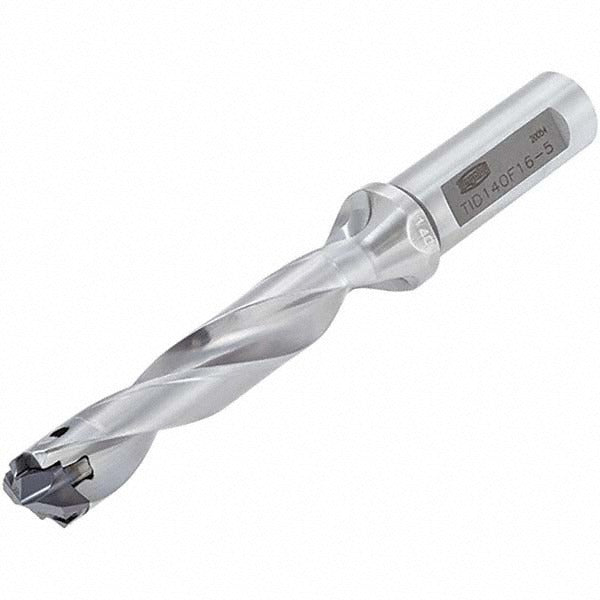

Tungaloy 6706795 Replaceable-tip Drill 25 Mm Shank

Product Description

The TUNGALOY 6706795 is a replaceable-tip drill body from the DrillMeister series, designed for precision drilling and holemaking in metalworking applications. The drill accepts DM*190 to DM*199 series replaceable tips and accommodates a working diameter range of 19 to 19.9 mm. Maximum drill depth reaches 98.5 mm, with an overall length of 181 mm and a 25 mm shank diameter. Through-coolant capability supports chip evacuation and heat management during deep-hole operations. This tool body is intended for use by machinists and tooling technicians operating CNC machining centers and similar equipment.

The 6706795 fits production drilling and holemaking operations in both job shop and manufacturing environments. The TID-F L/D=5 toolholder style suits setups requiring extended reach relative to shank diameter. Through-coolant delivery makes this body well-suited for interrupted cuts, stainless steels, cast irons, and other materials where chip control and thermal management are priorities. Compatible insert tips span the DM*190 to DM*199 range, giving operators flexibility to dial in diameter within the supported range without changing the drill body.

Key Features

• Replaceable-tip design reduces tooling cost by allowing tip swap without discarding the drill body
• Diameter range of 19 to 19.9 mm accommodates multiple finish-diameter requirements with one body
• Through-coolant port supports chip evacuation and thermal control at depth
• 98.5 mm maximum drill depth suits medium deep-hole applications
• 25 mm shank diameter provides rigid coupling to standard toolholders
• DrillMeister series TID-F L/D=5 style body for consistent runout and repeatability

Compatibility

Designed for use with DM*190 to DM*199 series replaceable drill tips. Compatible with toolholders accepting a 25 mm straight shank. Part of the TUNGALOY DrillMeister series platform.

Installation Notes

Installation and tip changes should be performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before mounting or removing the drill body or changing tips. Verify shank seating and coolant port alignment before engaging the workpiece. Follow the machine tool and toolholder manufacturer torque guidelines for clamping the shank.
