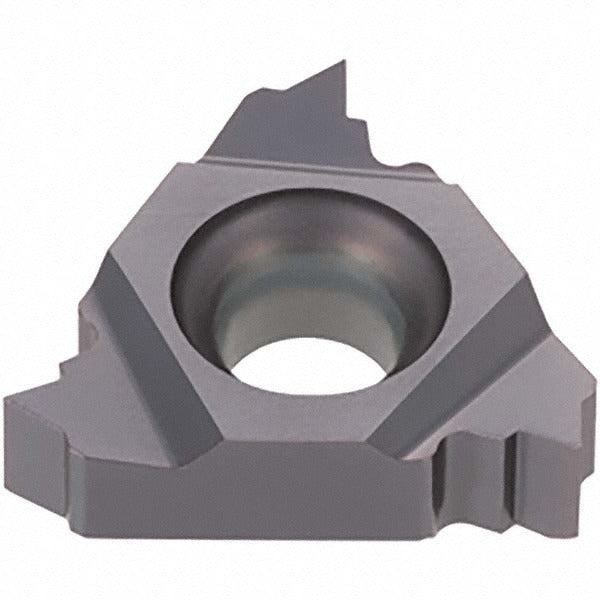

Tungaloy 5901572 Laydown Threading Insert Npt Carbide

Product Description

The TUNGALOY 5901572 is a laydown threading insert designed for external NPT thread cutting on a wide range of workpiece materials. Part of the TAC TungThread series, it carries the AH725 carbide grade with a PVD-applied TiAlN coating for wear resistance across universal material groups. The insert features a 60-degree included angle, an inscribed circle of 3/8 inches, and a thickness of 0.059 inches (1.50 mm). At 0.015 pounds, it is a compact, precision-ground carbide insert intended for use by machinists and pipefitters requiring consistent NPT thread form on external applications.

This insert is suited for external NPT threading operations in production machining and fabrication environments where tapered pipe thread forms are required. The right-hand cutting orientation and B chipbreaker designation make it appropriate for a range of turning centers and CNC lathes. It is rated for universal primary workpiece material compatibility, covering material codes H, K, M, N, P, and S, which span hardened materials, cast iron, stainless, non-ferrous, steel, and high-temperature alloys. Typical applications include pipe fitting components, valve bodies, and hydraulic fittings requiring NPT thread profiles.

Key Features

• AH725 solid carbide grade with PVD TiAlN coating for extended tool life
• 11.5 threads per inch (TPI) for standard NPT tapered pipe thread form
• Right-hand external cut orientation with 60-degree included angle
• B chipbreaker designation for controlled chip evacuation
• Universal workpiece material compatibility across steel, stainless, cast iron, non-ferrous, and high-temperature alloys
• ISO standard compliant insert geometry

Compatibility

Designed as an OEM-style replacement or direct-use insert for CNC lathes and turning centers accepting the 16ER insert style in the TAC TungThread series toolholder system.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer's clamping specifications. Power down and lock out the machine before seating or replacing the insert. Ensure the insert pocket is clean and free of chips before seating to maintain proper thread form accuracy. Do not overtighten the clamping screw, as this can cause insert fracture in carbide tooling.
