Ts Brass B-2872 Medical Faucet 8 Inch Centers Gooseneck

Product Description

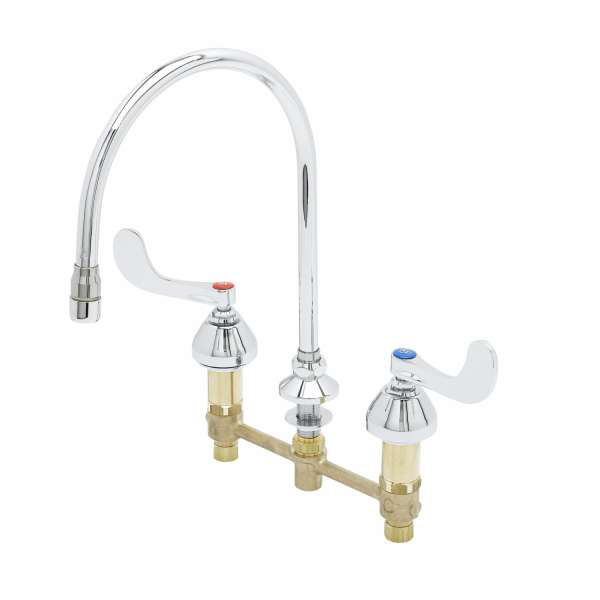

The TS BRASS B-2872 is an 8-inch center, concealed deck mount mixing faucet built for medical and clinical environments where hygiene and durability are critical. The forged brass body provides long-term corrosion resistance. A 135-degree swivel gooseneck spout with a non-splash 2.2 GPM aerator controls flow direction and minimizes contamination spread. Ceramic cartridges with integrated check valves ensure reliable on/off performance and backflow separation. The unit ships with polished chrome plated escutcheons and 1/2-inch NPT male inlets with coupling nuts. Licensed plumbers and medical facility maintenance staff are the primary installers.

The B-2872 is designed for concealed deck mount installations on sinks in medical, laboratory, and clinical settings. The 4-inch wrist action handles allow hands-free or forearm operation, which is standard practice in sterile and semi-sterile environments. The 8-inch center spread fits a wide range of pre-drilled commercial sink decks. The swivel gooseneck provides positioning flexibility to accommodate different basin sizes and workflow configurations. This faucet meets ADA accessibility requirements per ANSI/ICC A117.1, making it suitable for ADA-compliant patient and clinical sink installations.

Key Features

• Forged brass body for corrosion resistance and long service life
• 135-degree swivel gooseneck with non-splash 2.2 GPM aerator
• Ceramic cartridges with check valves for reliable flow control and backflow separation
• 4-inch wrist action handles for hands-free forearm operation in clinical environments
• Polished chrome plated escutcheons included
• Certified to NSF 61-Section 9 and NSF 372 for lead-free compliance in potable water systems

Compatibility

Designed for concealed deck mount installations on commercial and medical sinks with 8-inch center pre-drilled configurations and 1/2-inch NPT male inlet connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASME A112.18.1/CSA B125.1 standards. Shut off the water supply and depressurize the lines before beginning work. Use the supplied coupling nuts to secure the 1/2-inch NPT male inlets to the supply lines. Verify ADA-compliant mounting height requirements per ANSI/ICC A117.1 before finalizing deck penetration placement.

Technical Specifications

• Mount Type: Concealed deck mount
• Center Spread: 8 inches
• Spout Type: 135-degree swivel gooseneck
• Flow Rate: 2.2 GPM (non-splash aerator)
• Cartridge Type: Ceramic with check valves
• Handle Type: 4-inch wrist action
• Inlet Connection: 1/2-inch NPT male with coupling nuts
• Finish: Polished chrome
• Body Material: Forged brass
• Certifications: ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, ADA ANSI/ICC A117.1

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-2872
