Ts Brass B-0679 Bedpan Washer Vacuum Breaker Spray

Product Description

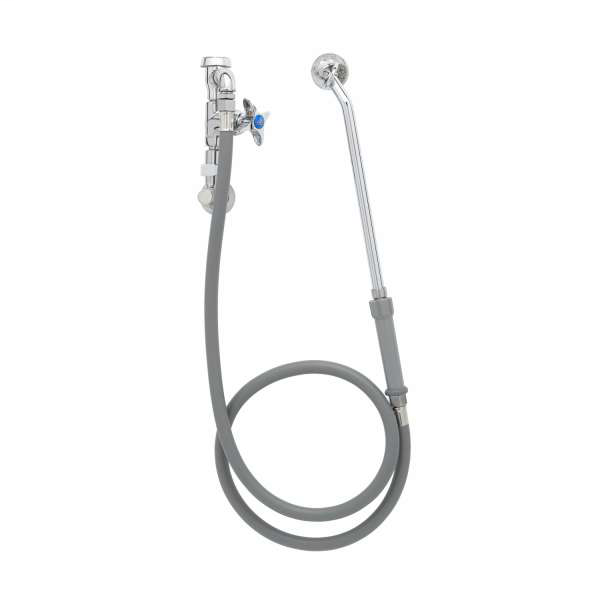

The TS BRASS B-0679 is a wall-mount bedpan washer designed for clinical and healthcare plumbing installations. It features an angled loose key stop with a control valve and compression cartridge with spring check, providing reliable shutoff and backflow protection in a single assembly. A 3/8-inch atmospheric vacuum breaker prevents cross-contamination at the water supply. The extended spray nozzle delivers 2.2 GPM through a rose-spray pattern, giving clinicians controlled, thorough rinsing. A 4-arm handle with color-coded index simplifies operation even with gloved hands. This unit is certified to ASME A112.18.1/CSA B125.1 and ASSE 1001, meeting code requirements in most jurisdictions for healthcare plumbing fixtures.

The B-0679 is suited for installation in hospital utility rooms, long-term care facilities, and any clinical setting requiring a dedicated bedpan rinsing station. The 1/2-inch NPT female inlet connects to standard domestic hot or cold supply lines. The 68-inch PVC hose provides enough reach to maneuver the spray nozzle over bedpans and clinical basins without straining. A wall hook keeps the hose and nozzle off the floor when not in use. Installation is typically performed by a licensed plumber under applicable plumbing codes.

Key Features

• Angled loose key stop with control valve for secure, key-operated shutoff
• Compression cartridge with spring check prevents backflow at the valve body
• 3/8-inch atmospheric vacuum breaker for backflow protection per ASSE 1001
• Extended spray nozzle with 2.2 GPM rose-spray pattern for thorough rinsing
• 68-inch PVC hose with wall hook for convenient storage and reach
• 4-arm handle with color-coded index for easy identification and operation
• Certified to ASME A112.18.1/CSA B125.1 and ASSE 1001

Compatibility

Designed as an OEM-style wall-mount bedpan washer with a 1/2-inch NPT female inlet, compatible with standard domestic water supply rough-in configurations in healthcare and clinical plumbing systems.

Installation Notes

Installation must be performed by a licensed plumber in accordance with the applicable local plumbing code and the International Plumbing Code (IPC). Shut off the water supply and relieve line pressure before connecting or servicing this fixture. The 1/2-inch NPT female inlet requires a matching male NPT supply fitting — use thread sealant tape rated for potable water. Do not overtighten the vacuum breaker assembly or hose connections, as this may damage the compression seats.

Technical Specifications

• Inlet Connection: 1/2 inches NPT female
• Vacuum Breaker Size: 3/8 inches atmospheric
• Hose Length: 68 inches PVC
• Flow Rate: 2.2 GPM (rose-spray nozzle)
• Valve Type: Loose key angle stop with compression cartridge and spring check
• Handle: 4-arm with color-coded index
• Certifications: ASME A112.18.1/CSA B125.1, ASSE 1001
• Mount Type: Wall mount

Standard Information

• Brand: TS BRASS
• Manufacturer Part Number: B-0679
