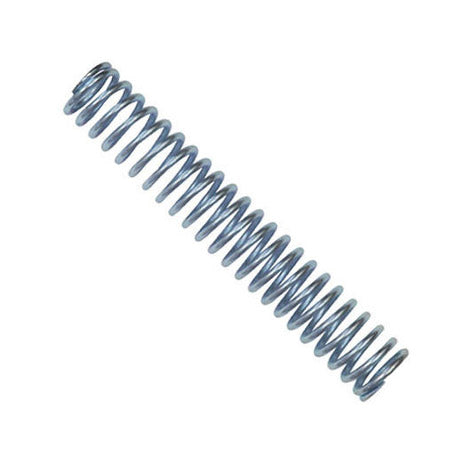

TRUE VALUE C-806 Compression Spring with 1-1/2 Outer Diameter

Product Description

The TRUE VALUE C-806 compression spring has a one and one-half inch outer diameter. It is a reliable component for applications requiring compression. This spring measures three and one-quarter inches in length and has a wire diameter of point one four eight inches. The solid height of the spring is one point four zero nine inches, which makes it suitable for various hardware uses.

• Designed for reliability in compression applications
• Maximum safe load of eighty point four pounds
• Ideal for mechanical and hardware assemblies

Product Highlights

This compression spring is useful for machinery and hardware projects where controlled compression is necessary.

Product Information

Standard Information

• Brand: TRUE VALUE
• Part Number: TV682344

Technical Specifications

• Outer Diameter: 1.5 inches
• Length: 3.25 inches
• Wire Diameter: 0.148 inches
• Solid Height: 1.409 inches
• Maximum Safe Load: 80.4 pounds
• Hazmat: No
