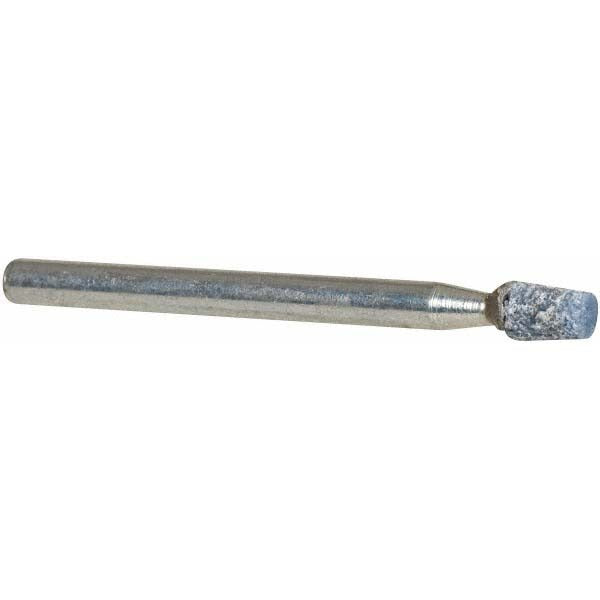

Tru-maxx 66253291593 Mounted Point 60 Grit B95 Flat Cone

Product Description

The TRU-MAXX 66253291593 is an aluminum oxide mounted point designed for precision grinding, deburring, and surface finishing on metal and hard materials. Shaped as a flat cone (point shape code B95), this mounted point measures 3/16 inches in thickness and mounts on a 1/8 inch diameter shank that is 1-1/2 inches long. The 60-grit, medium-grade abrasive provides an effective balance between material removal and surface finish quality. Spinning at up to 105,000 RPM, it is well suited for use with die grinders and rotary tools in close-tolerance or hard-to-reach grinding applications. Machinists, tool and die technicians, and maintenance professionals are the primary users.

This mounted point is used in applications requiring controlled grinding in confined areas, including weld blending, port work, mold finishing, and deburring of castings or fabricated metal components. The flat cone geometry allows access to angled surfaces and interior contours where flat or cylindrical wheels cannot reach. It is appropriate for both bench-mounted rotary setups and handheld die grinder work in shop or field maintenance environments.

Key Features

• Flat cone geometry (B95 point shape code) for access to angled and contoured surfaces
• Aluminum oxide abrasive material suited for grinding ferrous and non-ferrous metals
• 60-grit medium grade balances stock removal with surface finish control
• Maximum operating speed of 105,000 RPM compatible with standard die grinders
• 1/8 inch shank diameter fits common die grinder and rotary tool collets
• Lightweight at 0.02 pounds for extended handheld use with minimal fatigue

Compatibility

Designed for use with die grinders and rotary tools accepting a 1/8 inch shank collet. Verify that the tool speed rating meets or exceeds 105,000 RPM before use.

Installation Notes

Installation is performed by qualified machinists or maintenance technicians using a die grinder with the appropriate collet size. Ensure the tool is powered off and disconnected from any air or electrical supply before mounting or removing the point. Never exceed the 105,000 RPM maximum speed rating marked for this abrasive. Inspect the mounted point for cracks or damage before each use and replace immediately if any defect is found.
