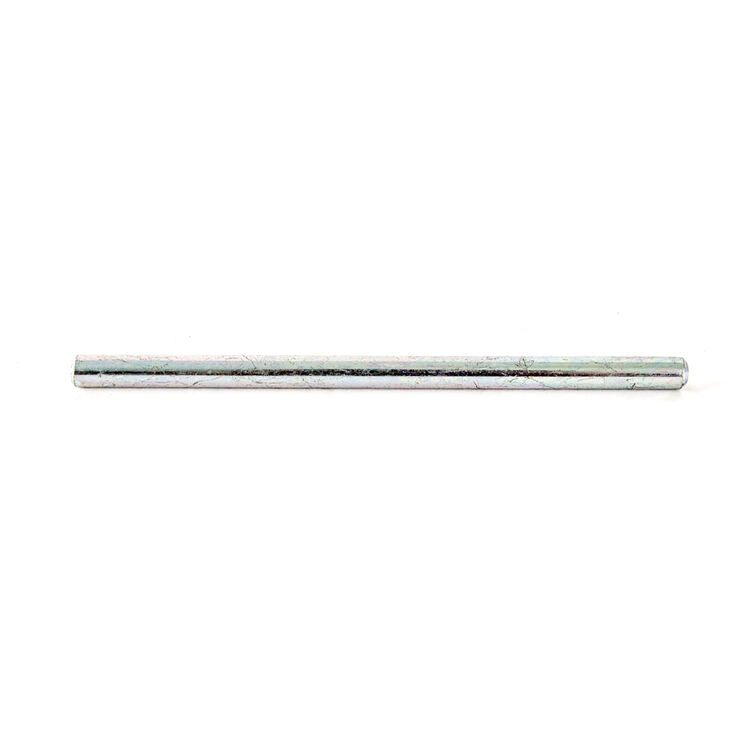

Troy-bilt 747-06290b Pin Chute Hinge

Product Description

The TROY-BILT 747-06290b is a pin chute hinge designed as a direct OEM-style replacement for TROY-BILT outdoor power equipment. The chute hinge assembly connects and pivots the discharge chute on a walk-behind mower or riding mower deck, allowing the operator to adjust the direction of clipping discharge. This hardware component is a common wear item that can crack, bend, or lose retention over time, making periodic replacement part of normal equipment maintenance. Installation is straightforward and suited to service technicians as well as experienced equipment owners performing routine upkeep.

This pin chute hinge is intended for use on TROY-BILT lawn and garden equipment where the discharge chute requires a functional pivot point. It is typically found on walk-behind mowers and riding lawn tractors equipped with side-discharge or rear-discharge deck configurations. Replacing a worn or broken chute hinge restores proper chute positioning and prevents the discharge opening from swinging freely during operation, which is both a performance and a safety concern.

Key Features

• OEM-style replacement hinge engineered to TROY-BILT specifications
• Restores proper discharge chute pivot function on lawn mower decks
• Pin-style design provides secure hinge retention under normal mowing conditions
• Direct fitment minimizes modification or adaptation during installation

Compatibility

Designed as an OEM-style replacement for TROY-BILT lawn and garden equipment requiring part number 747-06290b. Consult your equipment model and parts diagram to confirm fitment before ordering.

Installation Notes

Installation of this chute hinge should be performed with the mower engine off and the ignition key removed. Disconnect the spark plug wire before working near the deck or discharge chute assembly to prevent accidental engine start. Basic hand tools are typically sufficient for removal and installation of the hinge pin and retaining hardware. Refer to the equipment service manual for the correct procedure specific to the deck model.

Technical Specifications

• Part Type: Pin Chute Hinge

Standard Information

• Brand: TROY-BILT
• Manufacturer Part Number: 747-06290b
