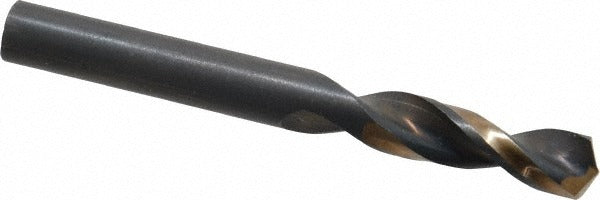

Triumph Twist Drill 060419 Screw Machine Drill Bit 19/64

Product Description

The TRIUMPH TWIST DRILL 060419 is a screw machine length drill bit designed for heavy-duty metal cutting in industrial and trade applications. Built from high speed steel with a coated finish, this bit features a 135-degree split point and web-thinned, tapered web configuration that reduces walking and improves hole entry on hard materials. At 19/64 inch (0.2969 inches) diameter with a 2.75-inch overall length and 1.5625-inch flute length, it fits standard drill chucks and screw machine setups. The right-hand spiral flute design promotes efficient chip evacuation. Machinists, tool-and-die tradespeople, and maintenance technicians reach for this bit when drilling through PH steel and superalloys.

The 060419 is suited for screw machine operations, CNC drilling fixtures, and bench drill press work where a stubby, rigid bit length is preferred over jobber length. Its shorter body reduces deflection in deep-hole setups and tight clearance situations. The T4HD series targets heavy-duty applications where standard-grade bits wear prematurely, making this bit appropriate for production drilling in stainless, precipitation-hardened steel, and high-temperature superalloy components.

Key Features

• 19/64 inch (0.2969 inches) diameter, screw machine length for reduced deflection
• 135-degree split point with web thinning for fast, accurate hole entry
• High speed steel construction with coated finish for extended tool life on hard metals
• Right-hand cut, regular spiral flute for efficient chip clearing
• Straight-cylindrical shank fits standard drill chucks without adapters
• T4HD heavy-duty series rated for PH steel and superalloy workpieces

Compatibility

Designed as a heavy-duty screw machine length drill bit for use in standard drill chucks accepting a straight-cylindrical shank, compatible with screw machines, drill presses, and CNC drilling equipment operating within the 0.2500 to 0.3000 inch drill bit size range.

Installation Notes

Installation and use of this drill bit should be performed by qualified machinists or trade professionals familiar with metal cutting operations. Secure the workpiece firmly and ensure the chuck is properly tightened before operation. Always wear appropriate PPE including eye protection when drilling metals. Follow machine manufacturer guidelines for spindle speed and feed rate appropriate to the workpiece material.
