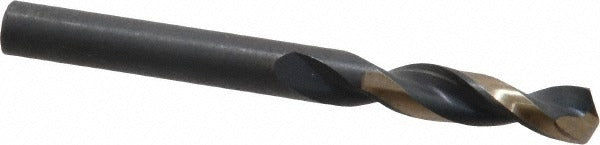

Triumph Twist Drill 060414 7/32 Screw Machine Drill Bit

Product Description

The TRIUMPH TWIST DRILL 060414 is a heavy-duty screw machine length drill bit designed for high-performance drilling in demanding applications. Built from high speed steel with a coated finish, it features a 135-degree split point that reduces walking and lowers thrust force at entry. The web-thinned, tapered web construction supports aggressive cuts in tough materials. At 0.2188 inches (7/32 inch) in diameter with a 2-3/8 inch overall length and a 1.25 inch flute length, this short-body bit fits standard drill chucks and magnetic drill setups. It is intended for use by machinists, maintenance technicians, and tool-room professionals working with precision drilling tasks.

The 060414 is built for drilling superalloys and other hard-to-machine materials where a standard jobber-length bit would flex or deflect. The screw machine length body provides increased rigidity in close-tolerance work, making it well suited for CNC drill presses, turret lathes, and manual drill presses in production and job-shop environments. The straight-cylindrical shank seats securely in standard Jacobs-style chucks. Right-hand spiral flutes evacuate chips efficiently during through-hole and blind-hole operations.

Key Features

• 135-degree split point reduces drill walk and cutting thrust on entry
• Web-thinned tapered web improves chip clearance and reduces heat buildup
• Screw machine length body provides superior rigidity over jobber-length bits
• High speed steel construction with protective coating extends tool life
• Right-hand cut with regular spiral flutes for efficient chip evacuation
• Straight-cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as an OEM-style replacement or direct selection for T4HD series screw machine drill bit applications requiring a 7/32 inch diameter bit in the 0.2000 to 0.2500 inch size range.

Installation Notes

Installation and use should be performed by qualified machinists or tool-room technicians familiar with drill press or lathe operation. Secure the shank fully in the chuck and verify runout before drilling. Ensure the workpiece is properly clamped before beginning any cut. Follow applicable machine guarding and PPE requirements per OSHA and shop safety standards.
