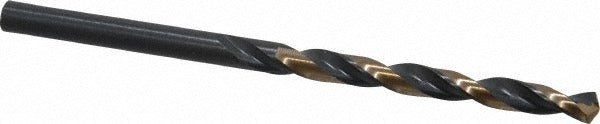

Triumph Twist Drill 012614 Jobber Drill Bit Wire 14

Product Description

The TRIUMPH TWIST DRILL 012614 is a jobber length drill bit designed for general-purpose drilling in metal, wood, and similar materials. Built from M7 high speed steel with an oxide/gold coating, it delivers heat resistance and extended cutting life in production and maintenance environments. The bit measures 3-3/8 inches overall length with a 2-3/16 inch flute length and a 0.1820 inch diameter corresponding to wire gauge size 14. The 135-degree split point reduces walking on contact and allows drilling to start without a center punch in many applications. Licensed electricians, pipefitters, HVAC technicians, and general maintenance tradespeople commonly use this bit.

This drill bit fits standard jobber-length drilling tasks in residential and light commercial settings. The straight-cylindrical shank seats in three-jaw drill chucks on handheld drills and drill presses alike. Its heavy-duty grade and web-thinned, tapered web construction make it well suited for repetitive hole production in sheet metal, conduit, pipe, and structural stock. It cuts right-hand and uses a regular spiral flute for efficient chip evacuation.

Key Features

• M7 high speed steel construction with oxide/gold coating for heat and wear resistance
• 135-degree split point reduces drill walking and lowers feed pressure
• Web-thinned tapered web improves chip flow and reduces cutting torque
• Straight-cylindrical shank fits standard 3-jaw drill chucks
• Right-hand cut with regular spiral flute for consistent chip evacuation
• Heavy-duty grade rated for production drilling applications

Compatibility

Designed as a jobber-length replacement drill bit for use in any standard drill press or handheld drill with a chuck capacity that accommodates a 0.1820 inch straight shank.

Installation Notes

This bit is installed and replaced by any trade professional operating a drill press or handheld power drill. Secure the shank fully in the chuck and tighten all jaws evenly before use. Always wear appropriate eye protection and secure workpieces before drilling. Inspect the cutting edges for wear or chipping before each use and replace the bit when point geometry is degraded to avoid workpiece damage or bit breakage.
