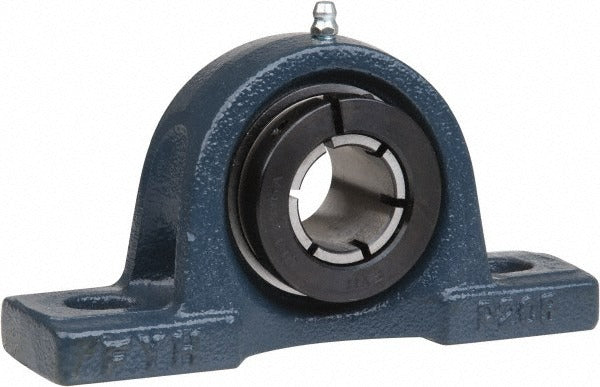

Tritan UCP206-19T Pillow Block Bearing 1-3/16 in Id

Product Description

The TRITAN UCP206-19T is a cast iron pillow block bearing designed for shaft support applications in industrial and mechanical drive systems. The bore measures 1-3/16 inches (1.1875 inches) with an outside diameter of 2-3/16 inches. Overall length is 6.5 inches and overall height is 3-5/16 inches. The unit uses an eccentric locking collar to secure the bearing to the shaft, making installation straightforward without specialized press equipment. Static load capacity is 2,540 pounds and dynamic load capacity is 4,383 pounds. This unit ships as a single pillow block assembly and is typically installed by millwrights, maintenance mechanics, or equipment technicians.

The UCP206-19T fits residential and commercial mechanical applications where a two-bolt base mount is required, such as conveyor systems, fan shaft assemblies, auger drives, and similar rotating equipment. The 4-3/4 inch distance between mounting hole centers and a base-to-center height of 1-11/16 inches (1.6875 inches) suit standard mounting plate layouts. The 1-7/8 inch base width (1.8750 inches) keeps the footprint compact for tight equipment frames.

Key Features

• 1-3/16 inch bore with eccentric locking collar for positive shaft retention
• 2,540 pound static load capacity and 4,383 pound dynamic load capacity
• Cast iron housing for durability in demanding industrial environments
• 4-3/4 inch bolt center spacing fits common two-bolt base mounting patterns
• 1-11/16 inch base-to-center height for standard shaft alignment
• Compact 1-7/8 inch base width for use in space-constrained equipment frames

Compatibility

Designed as an OEM-style replacement or new-installation pillow block bearing for two-bolt base mount applications requiring a 1-3/16 inch bore shaft and cast iron housing.

Installation Notes

Installation is performed by qualified maintenance mechanics or millwrights. De-energize and lock out all power to the driven equipment before removing or installing any bearing assembly. Ensure the mounting surface is flat and clean before torquing anchor bolts, and verify shaft alignment before tightening the eccentric locking collar. Follow applicable OSHA lockout/tagout procedures and equipment manufacturer guidelines throughout the service process.
