Tritan Cm 5 Ball Joint Linkage Rod End 5/16-24 Thread

Product Description

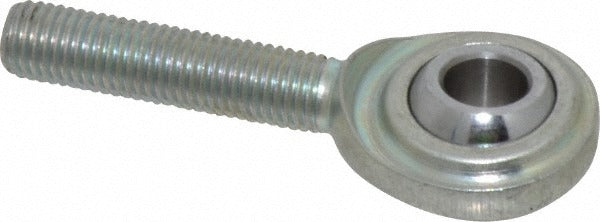

The TRITAN CM 5 is a plain male spherical rod end designed for ball joint linkage applications requiring reliable articulation under static and dynamic loading. Built with a carbon steel housing, steel raceway, and steel ball, this rod end features a zinc-plated finish for corrosion resistance. The 5/16-24 right-hand shank thread and 1.25-inch thread length provide secure engagement in standard linkage assemblies. Rated at 3,600 pounds static load capacity, it suits moderate-duty mechanical systems in HVAC, plumbing, and industrial equipment applications. Installation is straightforward for technicians familiar with rod end and linkage hardware.

This rod end fits applications where a male, right-hand threaded spherical joint is required at the 5/16-inch bore diameter range. Typical uses include control arm linkages, actuator rod ends, valve linkage assemblies, and damper control mechanisms found in mechanical and HVAC systems. The 22-degree maximum ball swivel angle accommodates misalignment in connected components, reducing stress on adjoining hardware during operation.

Key Features

• Carbon steel housing with steel raceway and steel ball for durability under load
• Zinc-plated finish provides corrosion resistance for extended service life
• 5/16-24 right-hand shank thread for standard linkage compatibility
• 3,600 lb static load capacity suits moderate-duty mechanical linkage applications
• 22-degree maximum ball swivel angle accommodates misalignment
• 5/16-inch bore diameter with 7/8-inch maximum outside diameter

Compatibility

Designed as an OEM-style replacement or direct-fit component for mechanical linkage assemblies requiring a plain male spherical rod end with 5/16-24 right-hand thread and 5/16-inch bore diameter.

Installation Notes

Installation should be performed by a qualified mechanical or HVAC technician familiar with linkage hardware. Ensure the connected system is fully de-energized and depressurized before removing or installing rod end components. Thread engagement should be sufficient to maintain rated load capacity - consult the equipment manufacturer's documentation for minimum thread engagement requirements. Do not exceed the rated static load capacity or maximum swivel angle during operation.
