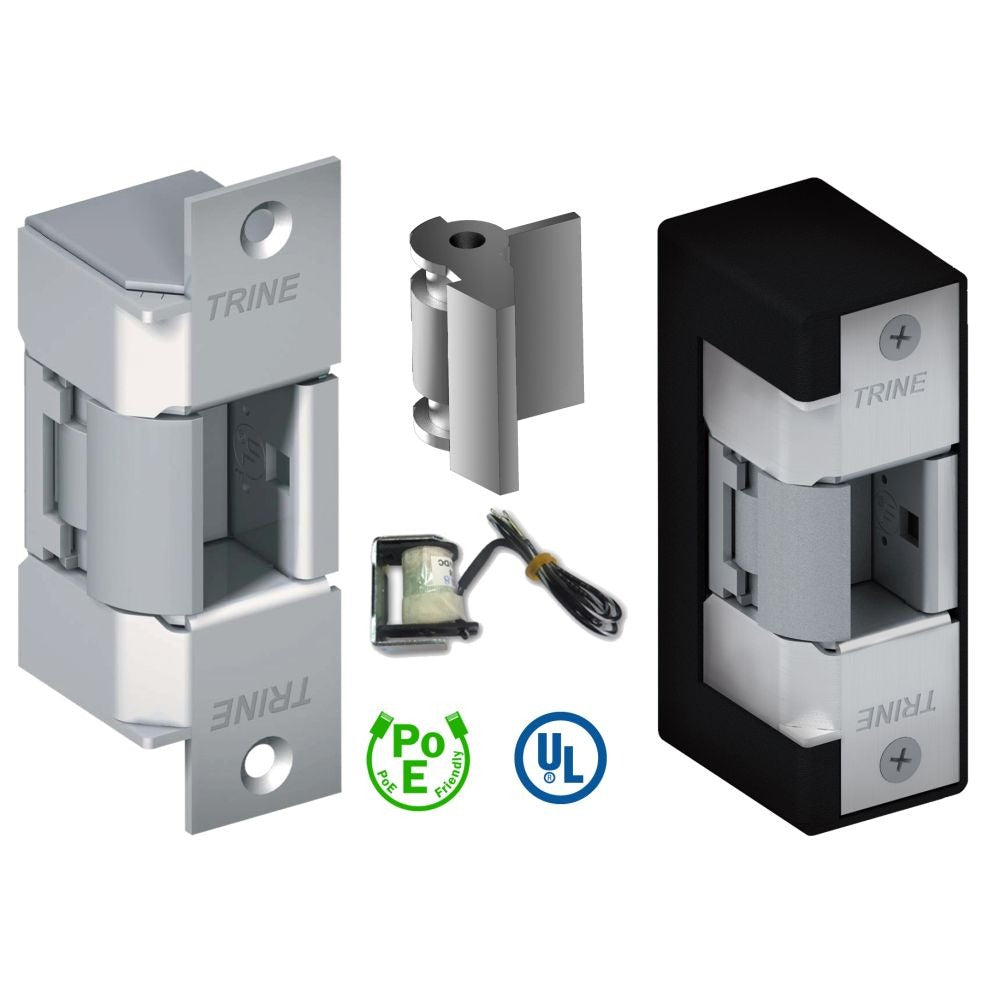

Trine 400CMRP32D Electric Strike Rim Panic Exit Device

Product Description

The TRINE 400CMRP32D is an electric strike designed specifically for use with rim panic exit devices, including the EN400 series. It operates on both 12 and 24 volt DC power and is finished in satin stainless steel for durability and corrosion resistance. Measuring 7.2 inches in length, 3.4 inches in width, and 2.3 inches in height, and weighing 1 pound, this strike provides a low-profile, surface-mounted solution for controlled egress applications. Licensed security installers and access control technicians are the primary trade installing this device in commercial door hardware applications.

The 400CMRP32D is suited for commercial and institutional buildings where rim panic exit hardware is required on controlled access doors. It is used in hollow metal frames and wood frames alike where a rim panic device must be paired with electric access control. The satin stainless steel finish makes it appropriate for high-visibility or corrosive-environment installs. Typical applications include stairwell doors, corridor egress doors, and secondary building exits that require both life-safety egress compliance and controlled entry.

Key Features

• Compatible with 12 volt DC and 24 volt DC power sources for flexible system integration
• Satin stainless steel finish provides corrosion resistance in demanding environments
• Designed specifically for rim panic exit devices including the EN400 series
• Compact form factor at 7.2 x 3.4 x 2.3 inches for installation in tight frame conditions
• Lightweight at 1 pound for straightforward single-tech installation

Compatibility

Designed for use with rim panic exit devices; the input specifies compatibility with the EN400 series. Suitable for installation in wood frames and hollow metal frames where rim panic hardware is present.

Installation Notes

Installation should be performed by a licensed security or access control technician familiar with low-voltage door hardware and local fire and life-safety codes. Disconnect and lock out all power to the access control circuit before beginning installation or wiring. Verify that the door frame and rim panic device alignment meet the manufacturer's rough-in requirements before securing the strike body. Consult local AHJ requirements and applicable fire code provisions when installing electric strikes on rated egress doors.
