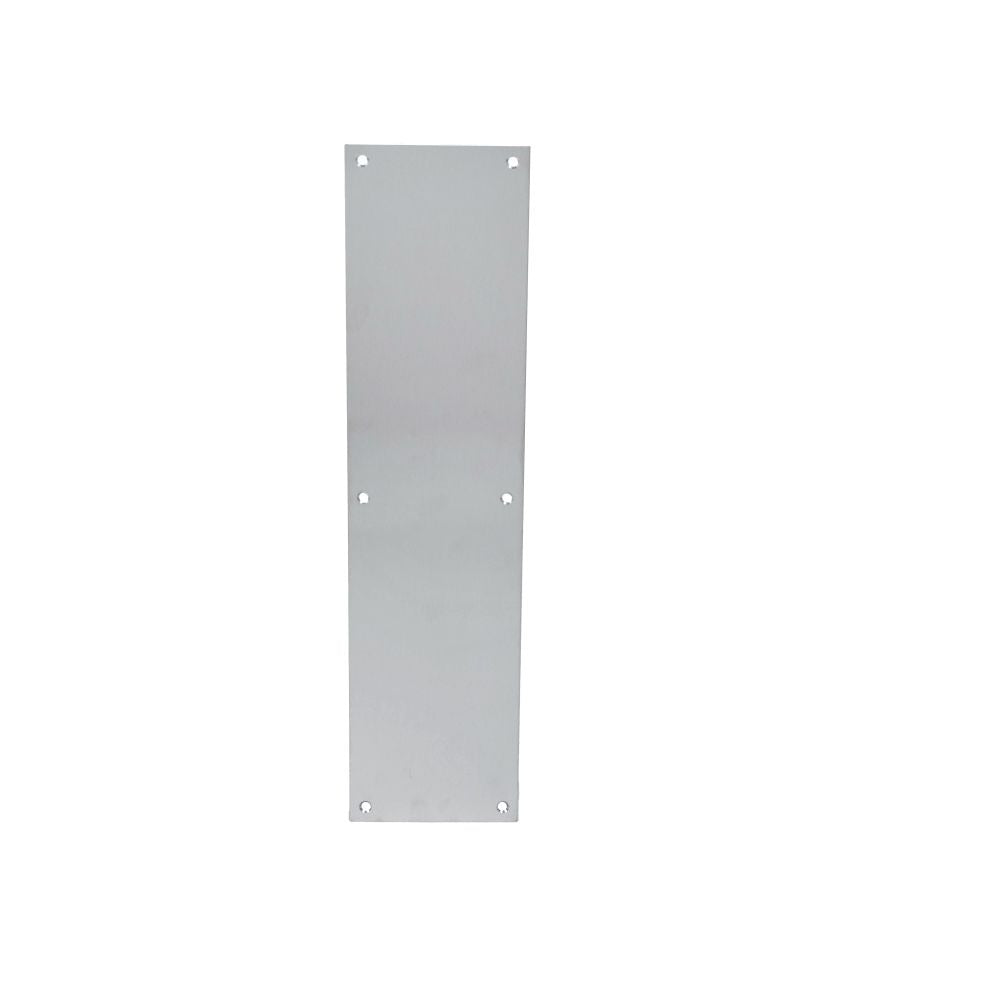

Trimco 10019630 Square Corner Push Plate Satin Stainless Steel

Product Description

The TRIMCO 10019630 is a square corner push plate finished in satin stainless steel, designed for use on commercial and institutional doors where high-traffic protection is required. Measuring 6 inches wide by 16 inches tall and just 0.14 inches thick, this low-profile plate mounts flush to the door face to guard the surface from hand and tool contact. At 1.3 pounds, it is lightweight enough for straightforward single-tech installation. The satin stainless steel finish provides corrosion resistance and a clean, professional appearance suited to demanding environments. This plate is sold individually as a single unit.

Push plates of this type are installed on the push side of commercial entry doors, corridor doors, and institutional doors in facilities such as hospitals, schools, office buildings, and government buildings. The 6 x 16 inch footprint suits standard door widths and complies with typical architectural hardware specifications. This plate works alongside door pulls, kick plates, and edge guards as part of a complete door protection package. Installation requires no special hardware knowledge beyond basic fastener work and is a routine task for locksmiths, commercial door technicians, and general contractors.

Key Features

• Square corner profile for a clean, standard architectural look
• Satin stainless steel finish resists corrosion and withstands frequent cleaning
• Low-profile 0.14 inch thickness mounts flush without interfering with door swing or hardware
• Lightweight at 1.3 pounds for easy single-person installation
• Sold as a single unit for flexible ordering

Compatibility

Designed as an OEM-style replacement or new-installation push plate for standard commercial and institutional doors requiring a 6 x 16 inch square corner plate in satin stainless steel finish.

Installation Notes

Installation is performed by a licensed locksmith, commercial door technician, or qualified contractor. Mount the plate on the push side of the door using appropriate machine screws or self-tapping fasteners suited to the door material. Ensure the door is secured in the open position or removed from service before drilling mounting holes. Follow local building codes and ADA guidelines where applicable for hardware placement on accessible doors.
