Trico Corporation 36100 Oil Sampling Port

Product Description

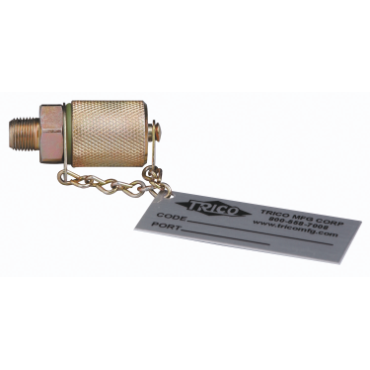

The Trico Corporation Oil Sampling Port 36100 is designed to facilitate the safe extraction of lubricating oil for analysis. This unit includes a protective cap connected by a brass chain to prevent loss. It samples directly while equipment is operational, using a sampling adapter to minimize contamination.

• 1/8 NPT port connection for easy installation
• Constructed from durable carbon steel
• Operates effectively at up to 9,000 psi working pressure

Product Highlights

This oil sampling port is essential for any professional looking to manage lubrication more effectively. It protects against dirt and moisture while maintaining system integrity.

Product Information

Standard Information

• Brand: Trico Corporation
• Part Number: 100873523

Technical Specifications

• Port Connection Thread: 1/8 NPT
• Working Pressure (Max): 9,000 psi
• Connect Under Pressure: 5800 psi
• Material: Carbon Steel
• Operating Temperature Range: -4 °F to 392 °F
• Cap Thread: M16x2
• Check Ball Valve: Stainless Steel
• O-Ring Material: Viton
• Use With Port Adapter: 36104, 36105, 36106, 36109, 36133
• Weight: 0.15 lb
