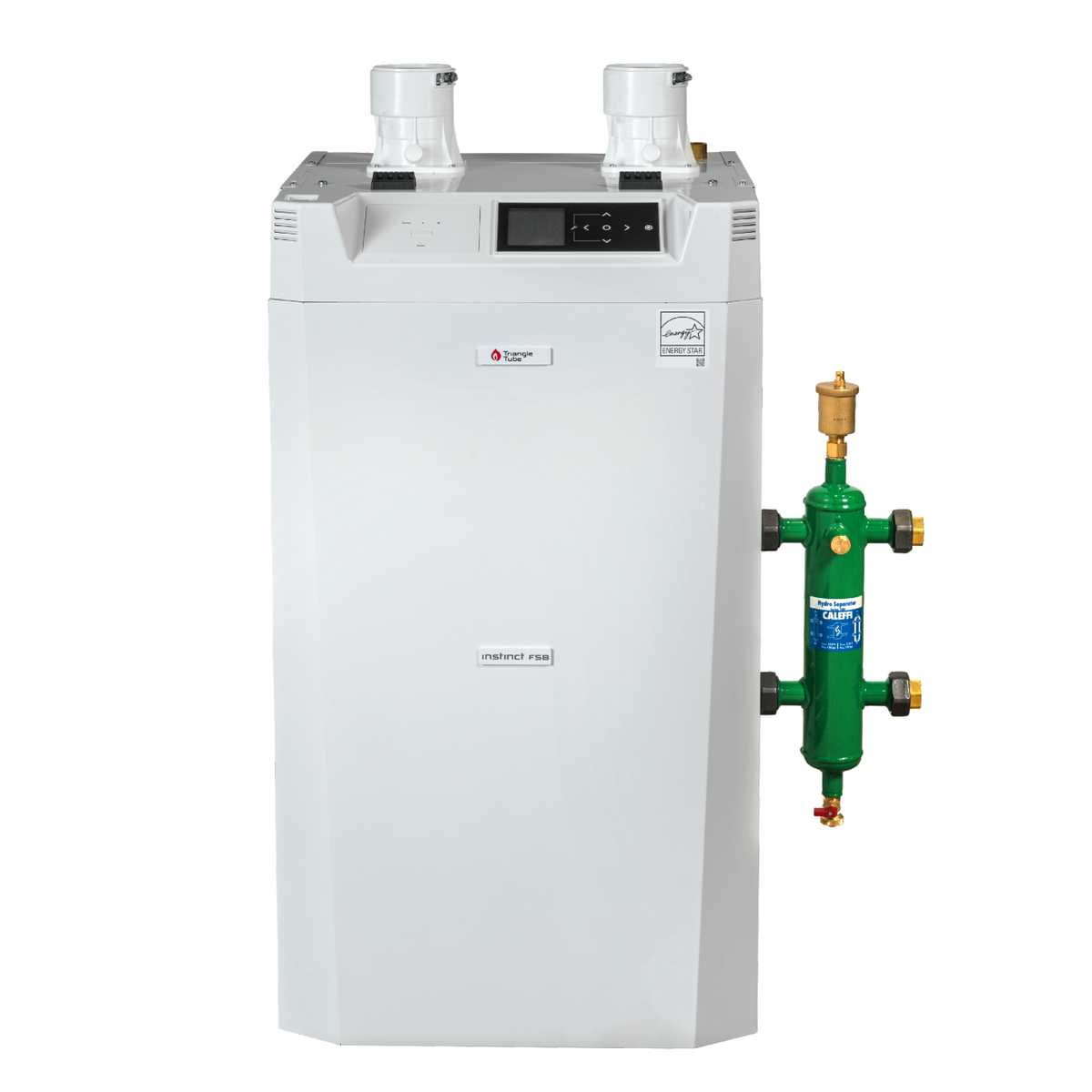

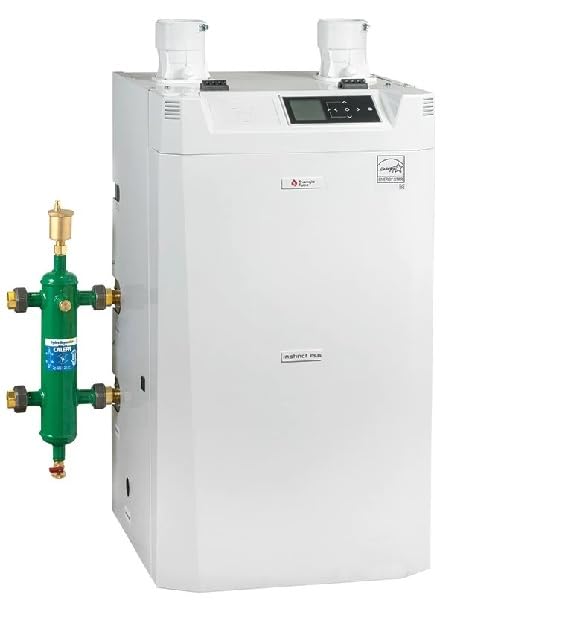

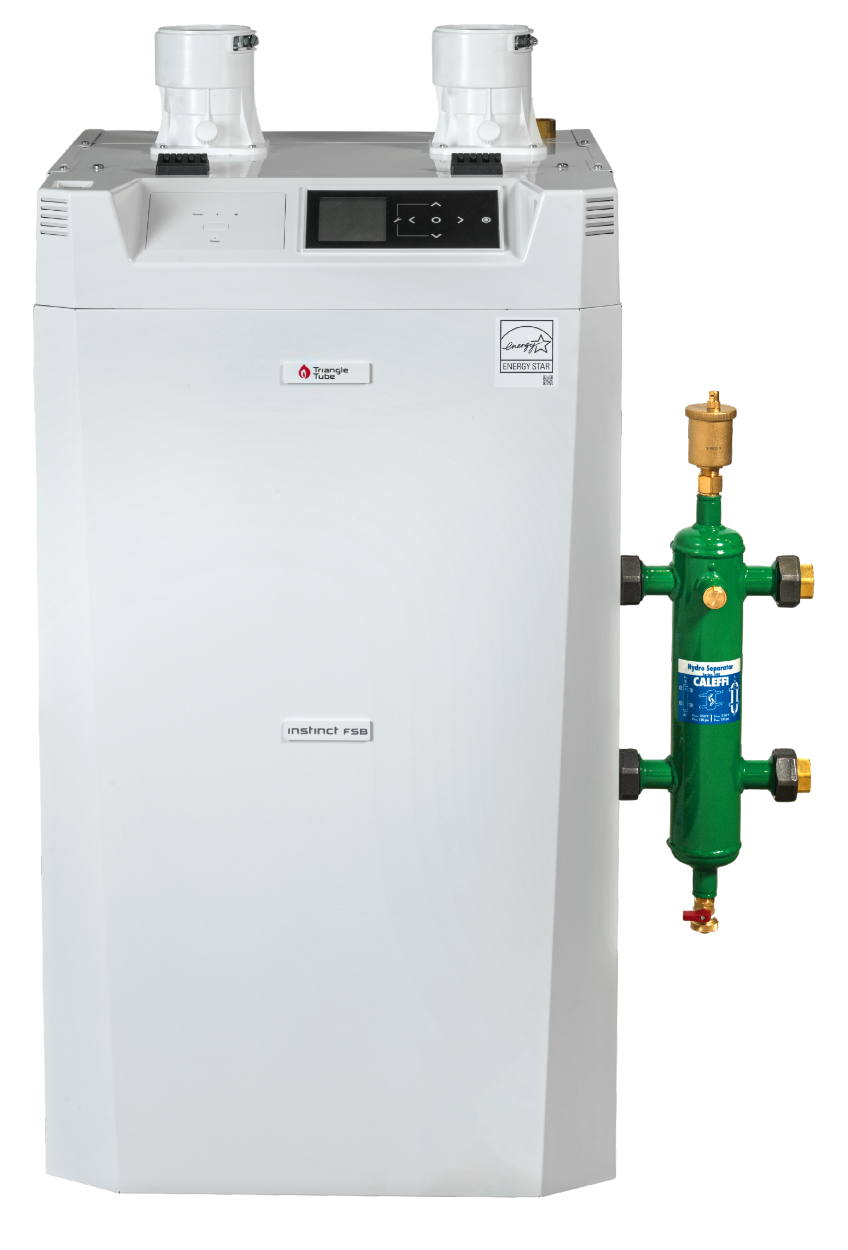

Triangle Tube INSFS199C Instinct Combi Boiler 199,000 BTU (Floor Mount)

Product Description

Triangle Tube INSFS199C is an Instinct combi floor-mounted boiler that provides space heating and domestic hot water with a maximum input of 199,000 BTU and 95% AFUE. The unit features an 8:1 turndown ratio, 184 MBH DOE heating capacity and a Net AHRI rating of 159 MBH. It has a 4-gallon water volume and includes a stainless steel fire tube heat exchanger, internal circulator pump, and Caleffi 548 hydraulic separator. Connections include 1" supply/return, 3/4" gas, and 3" vent/air.

• 95% AFUE with 199,000 BTU max input, 8:1 turndown; DOE heating capacity 184 MBH and Net AHRI 159 MBH
• Domestic hot water performance up to 5.3 GPM @ 70°F rise; stainless steel fire tube heat exchanger; 4 gallon water volume
• Includes internal circulator pump and pre-mounted Caleffi 548 hydraulic separator; connections: 1" supply/return, 3/4" gas, 3" vent/air; floor-mounted

Product Highlights

95% AFUE combi boiler with integrated circulator and Caleffi 548 hydraulic separator for heating and domestic hot water

Product Information

Standard Information

• Brand: TRIANGLE TUBE
• Manufacturer Part Number: INSFS199C

Technical Specifications

• Brand: Triangle Tube
• MPN: INSFS199C
• Model: Instinct FSB Combi 199
• Product Type: Combi boiler (floor-mounted)
• Minimum Input: 24,875 BTU
• Maximum Input: 199,000 BTU
• Input Rating (BTU): 24,875 - 199,000 BTU
• AFUE: 95%
• Turndown Ratio: 8:1
• DOE Heating Capacity: 184 MBH
• Net AHRI Rating: 159 MBH
• Water Volume: 4 gallons
• DHW Flow Rate: 5.3 GPM @ 70°F rise
• Heat Exchanger: Stainless steel fire tube
• Circulator: Internal circulator pump pre-installed
• Separator: Caleffi 548 Series hydraulic separator with air and dirt elimination
• Control System: CTRLMax
• Connectivity: Tsync Wi-Fi
• Vent Adapter: 3-in-1 universal vent adapter (accepts PVC, polypropylene, stainless steel)
• Supply/Return Connections: 1"
• Gas Connection: 3/4"
• Vent & Air Connections: 3"
• Plumbing/Gas Connections Orientation: Left or right side
• Mounting Type: Floor-mounted / floor-standing
• UPC: 5022142270870
