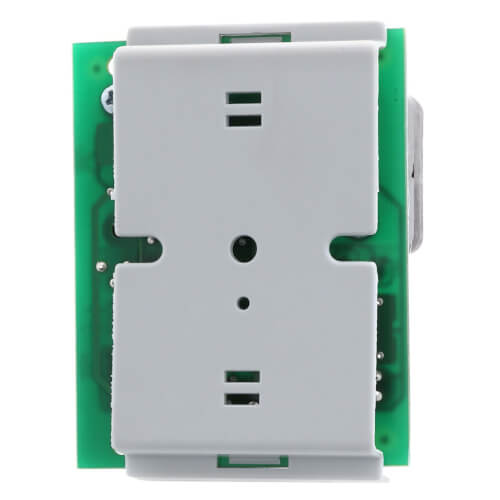

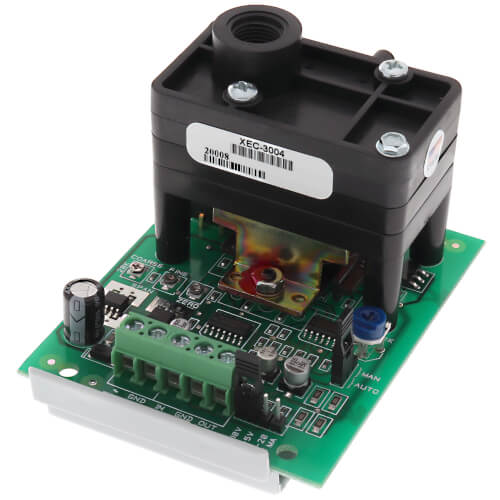

KMC Controls XEC-3004 E/I-P Transducer with Manual Override

Product Description

The KMC Controls XEC-3004 is a high-performance E/I-P Transducer designed for precise control within HVAC systems. This device efficiently converts electronic signals into a stable pneumatic output, ensuring optimal operation of damper and valve actuators based on the specific needs of branch line pressure.

• Manual override feature allows for direct intervention in system operations.
• Supports multiple input signal ranges, enhancing versatility.
• Not sensitive to position, can be installed either vertically or horizontally.

Product Highlights

This transducer supports a wide range of applications in HVAC systems, from controlling air flow to regulating environmental conditions in buildings. It's equipped with a gauge tap for pressure output monitoring and provides a feedback signal that is essential for maintenance and troubleshooting.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: XEC-3004

Technical Specifications

• Power Options: 24 VAC or 24 VDC
• Input Signal Options: 1 to 5 VDC, 2 to 10 VDC, 4 to 20 mA
• Output Signal: 3 to 15 psi
• Feedback Signal: 1 to 5 VDC
• Mounting: Standard 3.25 inch Snap Track
• Manual Override: Yes, with adjustable potentiometer
