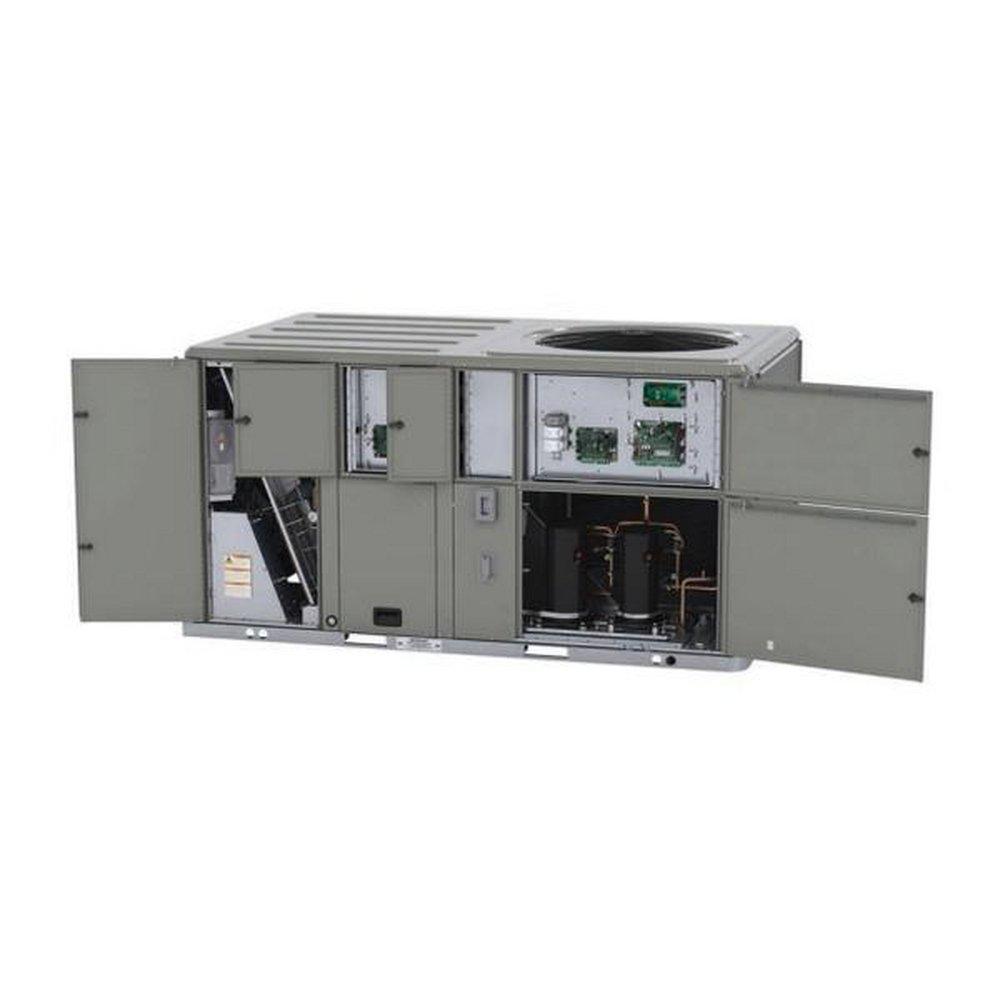

Trane YSJ090A4S0H0002 YSJ Series 7.5T STD EFF CONV PKG G/E 460/3

Product Description

The TRANE YSJ090A4S0H0002 is a YSJ Series 7.5T STD EFF CONV PKG G/E 460/3. This HVAC equipment is designed for commercial and rooftop applications. It features a two-stage compressor and a variable gas valve for efficient operation. The unit uses R-410A refrigerant and has a micro-channel coil type.

• 7.5 Ton capacity suitable for commercial applications
• Two-stage compressor enhances efficiency
• Variable gas valve allows for modulating operation

Product Highlights

Efficient and reliable HVAC equipment for commercial use, featuring a two-stage compressor and variable gas valve.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YSJ090A4S0H0002

Technical Specifications

• A2L Compatible: No
• Application: Commercial, Rooftop
• BTU: 162000
• BTU Cooling Rating: 91000 Btu/h
• BTU Heat Rating: 162000 Btu/h
• Blower Type: Direct Drive
• CFM: 2475
• Coil Type: Micro-channel
• Collection: YSJ Series
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Configuration: Convertible
• Decibel Rating (dB): 86 dB
• Depth: 88-1/8
• EER: 11.0
• Factory Std. Refrigerant Charge: 144
• Fuel Type: Propane, Natural Gas
• Gas Connection Size: 3/4
• Gas Valve Stages: Variable (Modulating)
• Heat Exchanger Type: Stainless Steel
• Height: 50-7/8
• Horsepower: 3.1 hp
• IEER: 14.6
• IEER Range: 14.0 - 99.9
• Ignition System: Direct Spark Ignition
• Input (MBH): 91 MBH
• Length: 88-1/8
• Lock Rotor Amps (LRA): 52
• MBH: 91
• Max CFM: 2475
• Max Fuse Size: 25
• Minimum Circuit Ampacity (MCA): 21
• Number of Compressors: 2
• Number of Condenser Fan Motors: 1
• Phase: Three Phase
• Power Source: Electric, Gas
• RPM: 1850
• Rated Load Amps (RLA): 16.4
• Refrigerant: R-410A
• Refrigeration Control Type: TXV
• Stages: Two
• Tonnage: 7.5 Ton
• Type: TYSJ090A4S0H0002
• Volts: 460V
• Watts: 8.18
• Width: 53-1/4
