TRANE Trane YSJ090A3S0L0000 Precedent 7.5 Ton 230V 3 Phase
TRANE Trane YSJ090A3S0L0000 Precedent 7.5 Ton 230V 3 Phase

Trane YSJ090A3S0L0000 Precedent 7.5 Ton 230V 3 Phase

TRANE
Brand: TRANE
SKU: YSJ090A3S0L0000*
Availability: Out Of Stock
Final Sale / No Returns
$7,818.69
$7,818.69

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 1013 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

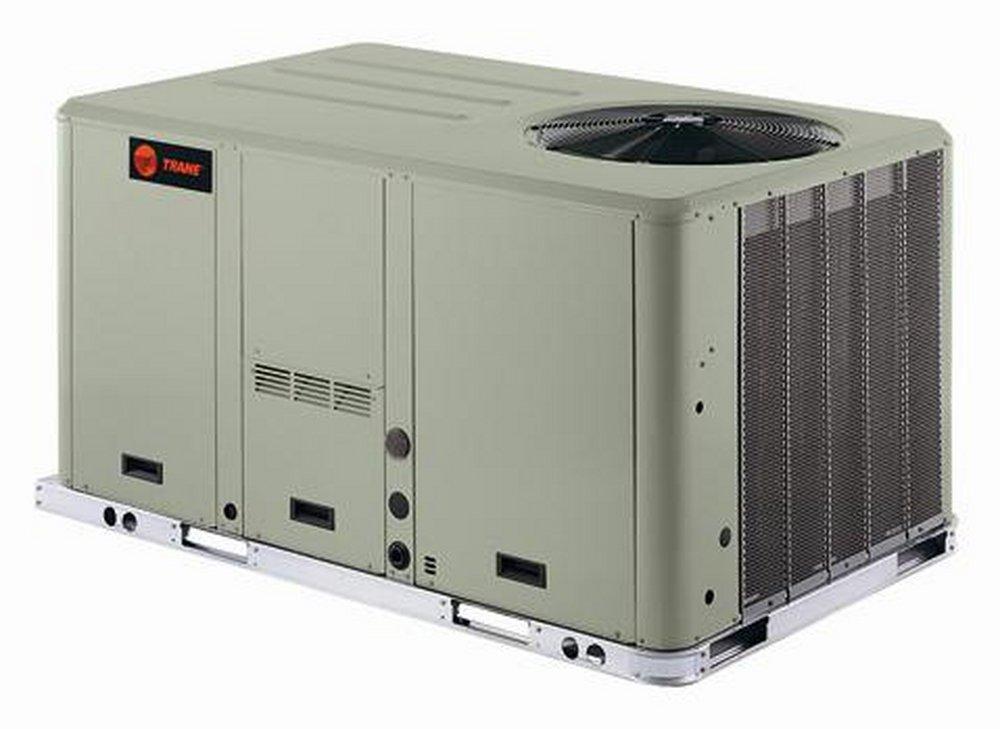

The TRANE YSJ090A3S0L0000 Precedent™ is a 7.5 Ton, 230V, 3-Phase convertible packaged gas/electric unit that meets a wide range of needs, from standard efficiency to ultra-high efficiency. It features cooling with optional electric heat, gas pack-electric cooling plus gas heating, and heat pump-all-electric refrigerant-system cooling and heating. All models meet DOE 2023 minimum efficiency regulations.

  • Meets a wide range of needs, from standard efficiency to ultra high efficiency
  • Feature-rich and cost-effective
  • Cooling only with optional electric heat -all electric

Product Highlights

This Trane Precedent unit provides reliable compressors and computer-aided run testing to ensure systems provide the best quality and meet long-term comfort needs.

Product Information

Standard Information

  • Brand: TRANE
  • Manufacturer Part Number: YSJ090A3S0L0000*
  • Country of Origin: United States
Technical Specifications
A2L Compatible
No
AMP
110, 16.4, 58, 9.2
Application
Light Commercial, Retail, Restaurant, Church and Office
BTU
91000
BTU Cooling Rating
91000 Btu/h
BTU Heat Rating
120000 Btu/h
Blower Type
Direct Drive
CFM
2475 ft3/min
Coil Type
Micro-channel
Collection
Precedent™
Compressor Type
Scroll
Configuration
Convertible
Decibel Rating (dB)
86 dB
EER
11.0
Energy Star Compliant
No
Fuel Type
Natural Gas, Propane
Horsepower
4-3/10 hp
MBH
91
Max Fuse Size
50
Phase
Three Phase
Power Source
Gas
RPM
3500
Refrigerant
R-410A
Stages
Single
Tonnage
7.5 Ton
UL Listed
Yes
Volts
230V
Watts
8.18 kW
Enclosure Finish
Zinc Coated
Enclosure Material
ASTM B117/672 Heavy Gauge Galvanized Steel
Frequency Rating
60 Hertz
Operating Temperature
0 to 125 Deg F
Power Rating
8.18 Kilowatt
Temperature Control Type
Thermostat
Type
Convertible From DownFlow & Horizontal
Voltage Rating
208/230 Volt AC
Number of Phases
3
Refrigerant Control Type
Thermostatic Expansion Valve
Motor Type
1850 RPM Direct Drive/Variable Speed
Connection Size
3/4 Inch (Gas Pipe)
Heating Capacity
84000 to 120000 BTU/Hour (Input), 68000 to 97200 BTU/Hour (Output)
Energy Efficiency
11 EER/14.6 IEER
Air Flow Rating
2475 CFM
Furnished Filter Type
Throwaway
Number of Rows
1
Fins per Inch
23
Noise Level
86 Decibel
Includes
Symbio 700 Control System
Applicable Standard
AHRI 210-240, ANSI Z21.47
Number of Cool Speeds
1
Number of Fan Motors
1
Number of Compressors
1
System Configuration
Downflow or Horizontal
Number of Zones
5 or More
Model
YSJ090A3S0L0000
Country of Origin
United States
