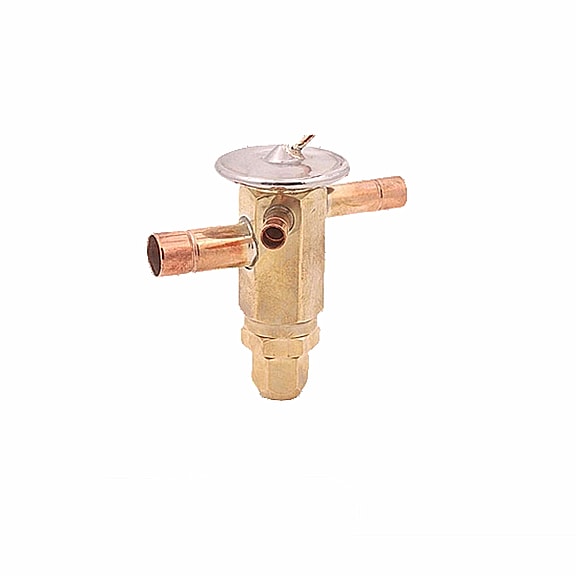

TRANE VAL8324 Valve

Product Description

The Trane VAL8324 valve is designed for regulating refrigerant flow in HVAC systems. It adjusts its position based on signals from the thermostat to maintain the right pressure and temperature. This valve plays a crucial role in energy efficiency within HVAC systems by connecting different components effectively.

• Controls refrigerant flow in HVAC systems.
• Regulates pressure and temperature for optimal performance.
• Operates based on thermostat signals.

Product Highlights

The effectiveness of the Trane VAL8324 valve ensures efficient heat exchange, contributing to better energy management.

Product Information

Standard Information

• Manufacturer: Trane
• Part Number: VAL8324

Technical Specifications

• Type: Non-Adjustable
• Standards: UR
• Size: 0.125 x 24 inches
• Refrigerant: R-22
• Working Pressure: 700 PSI
• Actuator Type: Thermal
• Capacity: 3 Ton
• Charge Code: CA
• Nominal Capacity: 3 Ton
• Pressure Rating: 700 MWP, 52/48 Super Heat Setpoint PSIG
• Tonnage: 3
• Connection Size: 0.125 OD x 24
• Capillary Tube Size: 30 inches
• Body Material: Stainless Steel
