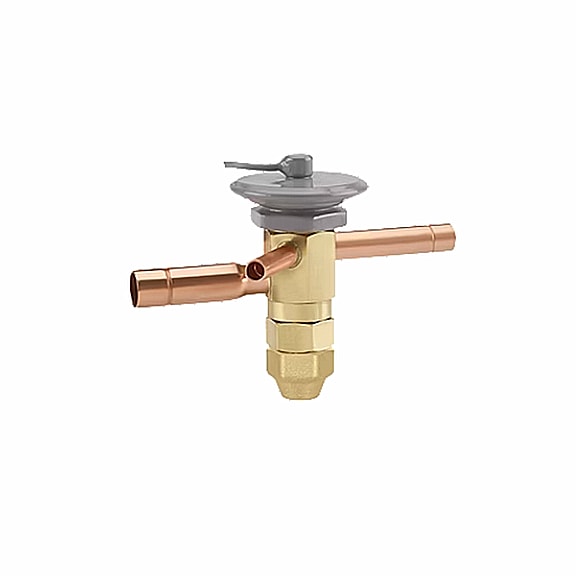

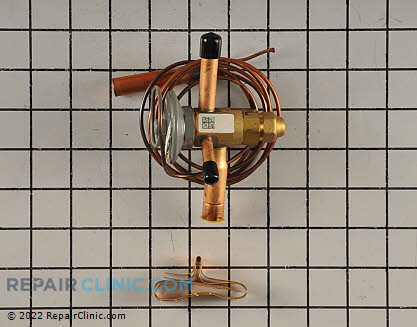

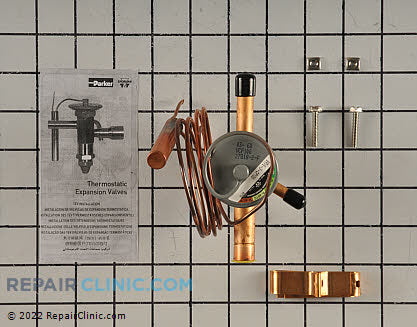

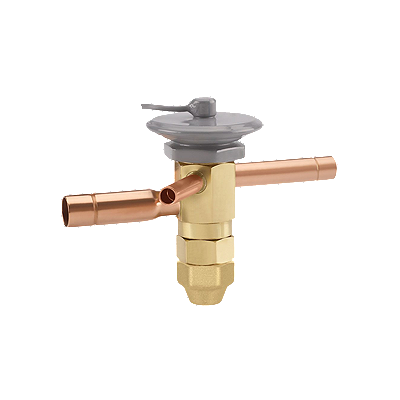

Trane VAL12224 Thermal Expansion Valve

Product Description

The Trane VAL12224 is a thermal expansion valve suitable for HVAC systems. This valve connects to tubing with an outside diameter of one half inch and three eighths inch. It adjusts the refrigerant flow entering the evaporator based on temperature changes. This functionality is critical for maintaining optimal system efficiency.

• Connects to 1/2 inch ODS and 3/8 inch ODS tubing
• Regulates refrigerant flow based on temperature changes
• Helps optimize HVAC system efficiency

Product Highlights

This valve is designed for reliable performance in HVAC applications.

Product Information

Standard Information

• Manufacturer: Trane
• Part Number: VAL12224

Technical Specifications

• Type: Sweat
• Material: Brass
• Connection Size: 3/8 in. x 1/2 in.
• Connection Type: ODF
• Refrigerant: R-22
• Working Pressure (PSI): 450
• Actuator Type: Thermal
• Capacity (Ton): 3
• Nominal Capacity (Ton): 3
• Pressure Rating: 450 MWP PSI
• Capillary Tube Size (In): 60
• Trim: Brass Seat
