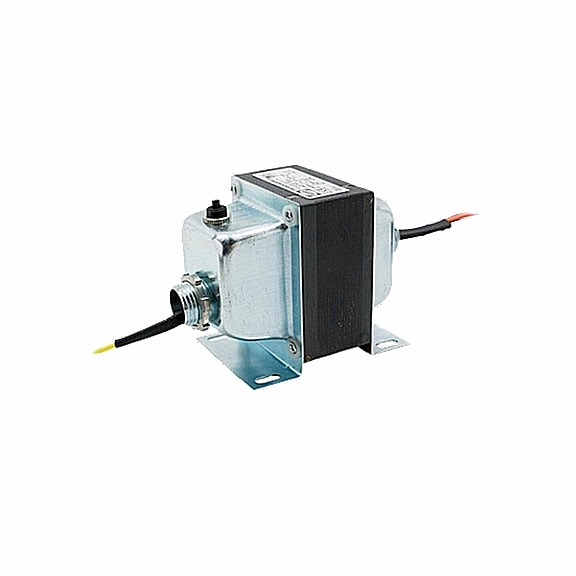

Trane TRR2397 Transformer

Product Description

The Trane TRR2397 transformer is designed to step down electrical voltage specifically for HVAC systems. This transformer provides essential power to control circuits and internal components, ensuring that heating and cooling equipment operates efficiently. It is built to maintain stable voltage levels crucial for system performance.

• Provides voltage conversion for HVAC control systems
• Maintains consistent voltage levels for efficient operation
• Offers overcurrent protection with a circuit breaker

Product Highlights

The Trane TRR2397 transformer supports reliable voltage conversion, making it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Trane
• MPN: TRR2397

Technical Specifications

• Manufacturer: Trane
• Part Number: TRR2397
• Mounting Type: Foot/Dual Threaded Hub
• Temperature Rating: -30 to 140 Deg. F
• Type: Control, Split Bobbin
• RoHS: TRUE
• Standards: CE, UL
• Voltage-Primary (VA): 120/208/240/277/480
• Voltage-Secondary (VA): 24 V
• Class: 2
• Output Power (VA): 96
• Voltage-Secondary (VAC): 24
• Number of Phase: 1
• IP Rating: Open
• Over Current Protection: Circuit Breaker
• Termination: Wire Lead
