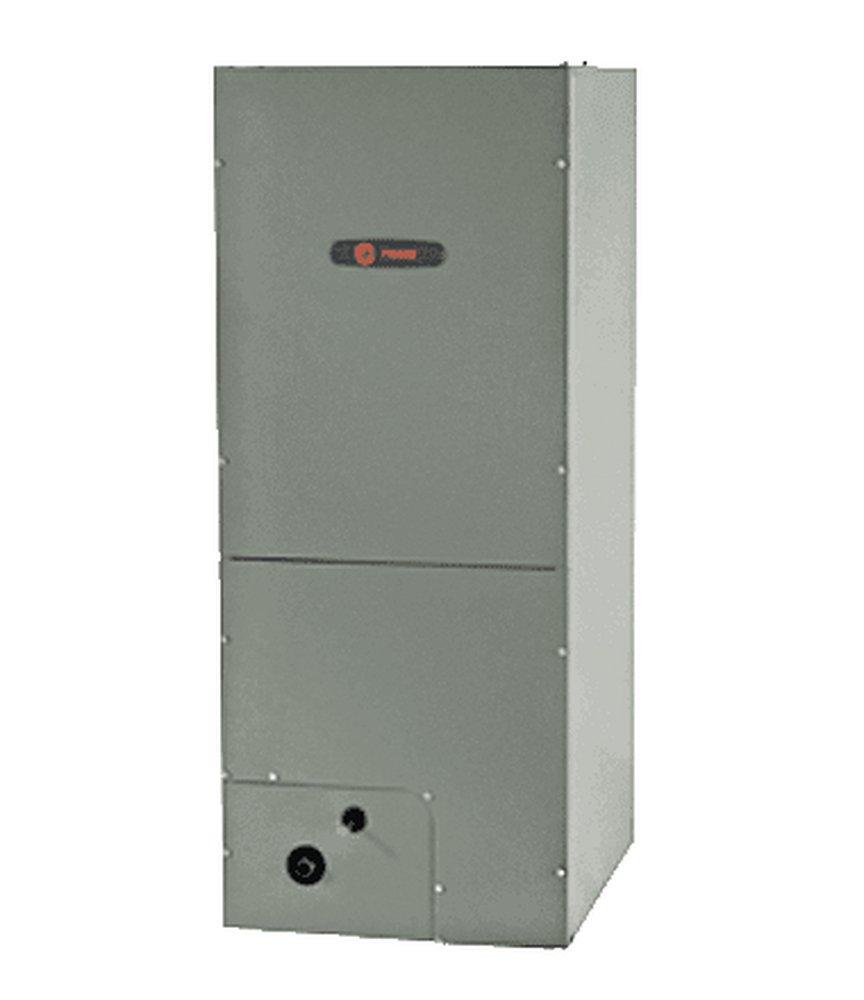

Trane TEM8A0B30V31DC Tem8 Series 2.5 Ton Air Handler

Product Description

The Trane TEM8A0B30V31DC is a 2.5 Ton air handler from the Tem8 series. This convertible, variable-speed air handler is designed for HVAC systems. It is suitable for use in residential or commercial HVAC systems requiring a 2.5-ton capacity.

• 2.5 ton nominal capacity
• Multi-position configuration
• Variable speed motor

Product Highlights

The Trane TEM8A0B30V31DC is a 2.5 ton air handler with a variable speed motor.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TEM8A0B30V31DC

Technical Specifications

• Model Number: TEM8A
• Amperage Rating: 3.9 A
• BTU Rating: 30000 Btu/hr
• Configuration: 4-Way, Multi-Position
• Connection Type: Brazed
• Frequency Rating: 60 Hz
• Fuse Rating: 15 A
• HP Rating: 1/2 hp
• Liquid Line Size: 3/8 in
• Material: Metal
• Motor Type: ECM
• Nominal Capacity: 2.5 ton
• Number of Speeds: 16
• Phase: 1 ph
• Refrigerant Type: R-410A
• Suction Line Size: 3/4 in
• Voltage Rating: 208/230 V
