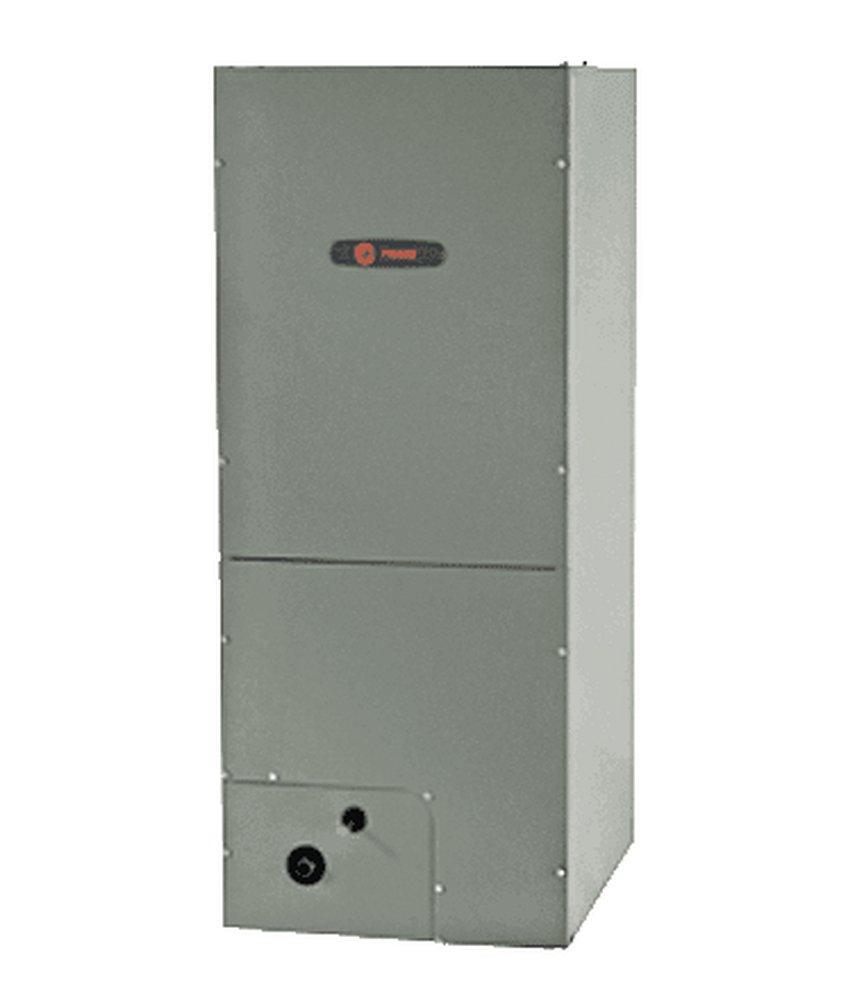

Trane TEM6B0C60H51SA M Series Air Handler 5 Ton

Product Description

The Trane TEM6B0C60H51SA M Series 5 Ton Air Handler features a variable speed blower motor and Comfort-R humidity control. Designed for installation in various locations, it's applicable for air conditioning and heat pump systems. Durable components include an all-aluminum coil, corrosion-resistant cabinet, and polymer drain pan. It provides quiet, consistent airflow for long-term performance.

• Variable speed blower motor
• Comfort-R humidity control
• No-rust polymer drain pan

Product Highlights

Features a variable speed blower motor, Comfort-R humidity control, and a no-rust polymer drain pan.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TEM6B0C60H51SA

Technical Specifications

• Additional Information: 24 VAC Standard System Control
• BTU Rating: 60,000 Btu/hr
• CFM Rating: 2,000 cfm
• Finish: Painted
• Frequency Rating: 60 Hz
• Material: Metal
• Model: TEM6
• Motor Type: ECM
• Nominal Capacity: 5.0 Ton
• Number of Stages: Single
• Phase: 1 ph
• Refrigerant Control: TXV
• Refrigerant Type: R-410A
• Rotational Speed: Variable rpm
• Series: Silver Series
• Voltage Rating: 208/230 V
• A2L Compatible: No
• AMP: 6.8
• BTU: 60000
• Blower Type: Variable Speed
• Coil Type: Aluminum Fin
• Collection: TEM6 M Series
• Configuration: Convertible, Downflow, Horizontal Left, Horizontal Right, Multi-Position, Upflow, Variable
• Depth: 21-1/8
• Height: 55-3/8
• Liquid Line (OD): 3/8
• MBH: 60
• Power Source: Electric
• Refrigerant: R-410A
• Stages: Variable
• Suction Line (OD): 7/8
• Tonnage: 5 Ton
• UL Listed: Yes
• Volts: 208/230V
• Weight: 174
• Width: 23-1/2
