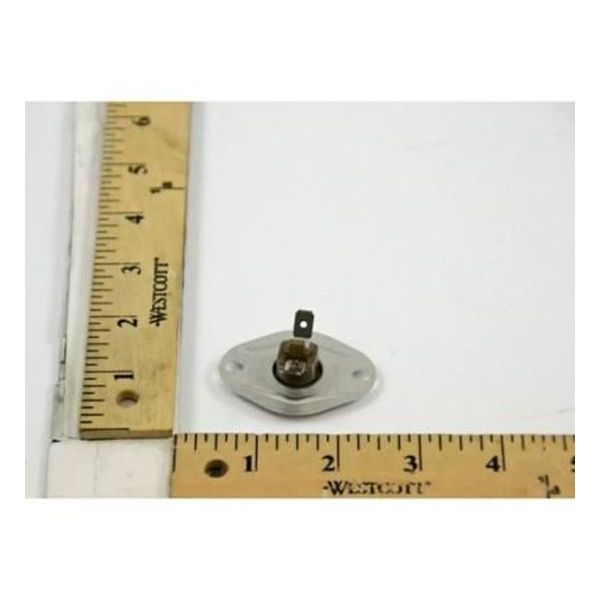

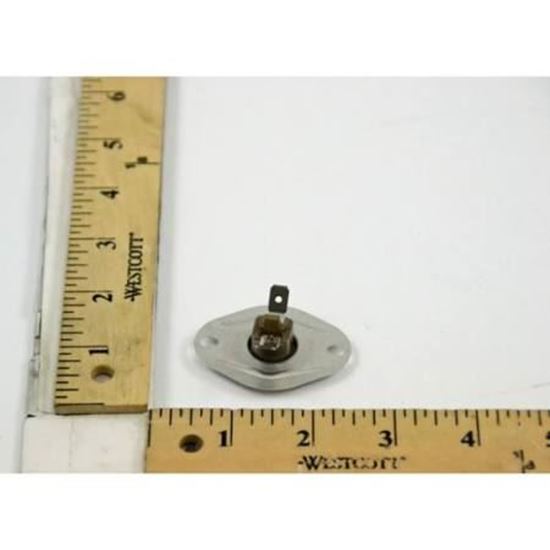

Trane SWT0768 Limit Switch 280°F

Product Description

The Trane SWT0768 is a limit switch used in Trane HVAC systems. This safety device is designed to shut down equipment when the temperature reaches 280°F, breaking the electrical circuit to prevent overheating. The switch is normally closed, meaning it allows current to flow until the high temperature is detected.

• Functions as a safety device to prevent overheating.
• Opens the electrical circuit at 280°F.
• Suitable for use in Trane HVAC systems.

Product Highlights

This limit switch is crucial for maintaining equipment safety in heating applications.

Product Information

Standard Information

• Brand: Trane
• MPN: SWT0768

Technical Specifications

• Type: Furnace Limit Switch
• Open Temperature: 280°F
• Contact Configuration: Normally Closed
• Voltage: 120V
• Current Rating: 25A
• Current Rating (FLA): 5A
• Locked Rotor Current: 25A
• Terminal Type: Quick Connect
• Standards: UL and CSA Recognized
• Height: 2 inches
• Width: 1.5 inches
• Length: 0.55 inches
• Weight: 0.03 lbs
• Function: Manual Reset
• Release Force: 22.2 N
• Switch Tolerance: ±12 Open
